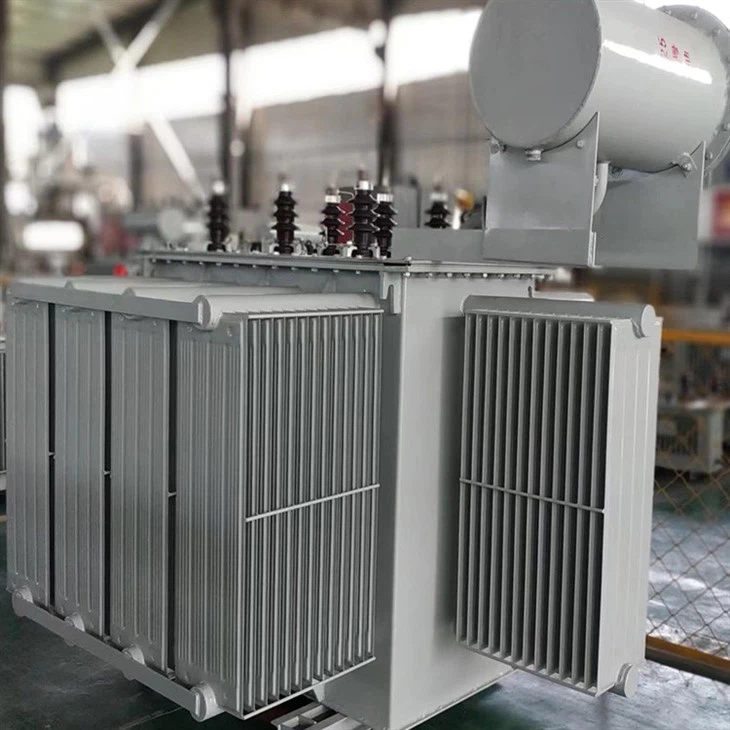

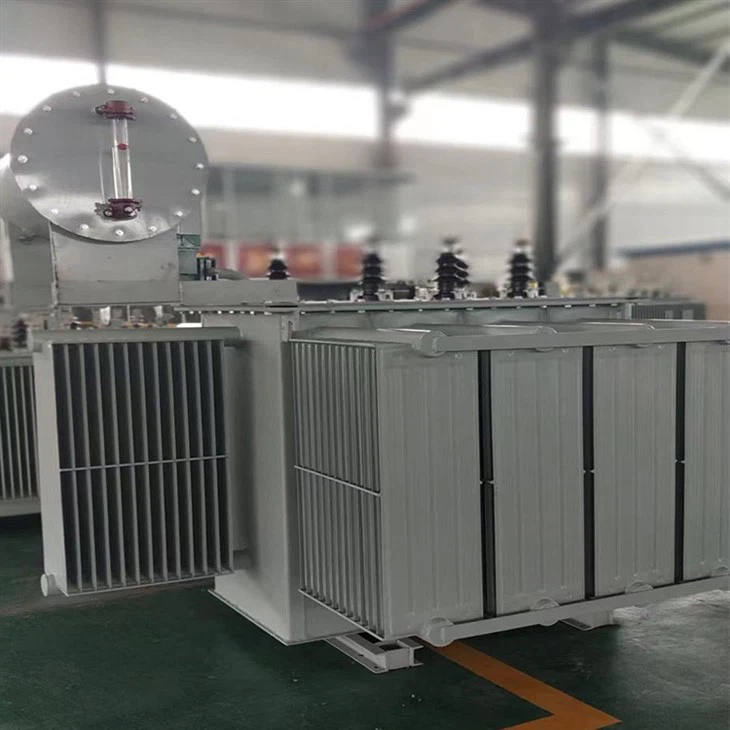

2.5 MVA Roj Immersed Electrical Distribution Transformer

2.5 MVA Transformer Specificationntawm

S11-2500KVA 2.5 MVA Roj Immersed Electrical Distribution Transformer yog tsim rau underground central substations hauv thee mines, underground car yards, general air intake ducts and main air intake ducts, where there is gas but no explosion hazard. Kuj tseem haum rau qhov chaw ntub dej hauv qhov tunnels.

Kev siv ib puag ncig ib puag ncig: qhov siab tsis tshaj 1000m

ambient kub txog li 40 degree, nqes mus rau -25 degree

Ib puag ncig tshwj xeeb ntawm kev siv: qhov siab tshaj 1000m

Cov av noo nyob ib puag ncig tsis tshaj 95 feem pua ​​(ntxiv rau 25 degree)

Nyob rau hauv ib puag ncig tsis muaj zog turbulence thiab vibration thiab inclination mus rau ntsug dav hlau tsis tshaj 350 degree

2.5 MVA Roj Immersed Electrical Distribution Transformer Standards

1. JB3995-2006

2.GB1094 1-1996

3.GB1094 2-1996

4.GB1094 3-2003

5.GB1094 5-2003

6. IEC60076

2.5 MVA Roj Immersed Fais Fais Fais Fais Fais Fais Transformer Model Parameters

Lub peev xwm ntawm S11 roj-immersed transformer yog 50KVA-3150KVA, thiab peb lub Hoobkas lees txais kev hloov kho cov khoom uas muaj peev xwm ntau dua.

Voltage theem: 11KV-0.4, hom qauv yog:

S-50/11, S-80/11, S-100/11, S-125/11, S-160/11, S-200/11

S-250/11, S-315/11, S-400/11, S-500/11, S-600/11 thiab lwm yam.

2.5 MVA Transformer Datasheet

Transformer Hom: Peb-theem Transformer

Peev xwm: 2500kVA

Thawj qhov hluav taws xob: 13,800 volts

Qhov nruab nrab Voltage: 480V

Zaus: 50 / 60 Hz

Kev ntsuas tam sim no: HV 104.6A LV 3007.1A

Kev sib txuas: Dyn11

Winding khoom: tooj liab

Kev ua tau zoo: 98.5 feem pua

Impedance: 5 feem pua

Cua txias: ONAN (Oil Natural Air Natural)

Roj muaj peev xwm: 1300L

Qhov hnyav: 5700 kg

Loj: 3100 * 1900 * 1800mm

Kais Changer: Off-load kais hloov pauv nrog 5 txoj hauj lwm kais

Standards: IEEE, KEMA, ANSI, UL, CSA

Yog tias koj tseem xav tau 2.5 mva transformer nameplate cov ntsiab lus, 2.5 mva transformer kos duab, 2.5 mva transformer nqi lossis customized transformer, pls xa lus nug rau peb! Peb cov ntaub ntawv tiv tauj raws li hauv qab no.

Email: gracejia@zydqjt.com

Whatsapp: ntxiv rau 8613513222010

2.5 MVA Roj Immersed Electrical Distribution Transformer Nta

1. Lub tank roj muaj cov qauv zoo thiab tuaj yeem tiv taus qhov kev sim siab ntawm ib qho chaw. Tsis muaj roj conservator ntawm lub tank npog. High thiab low voltage cable junction boxes yog welded rau ob sab ntawm lub thawv phab ntsa rau cable txuas. Lub high-voltage coil muaj qhov ntsuas hluav taws xob thiab qhov ntsuas hluav taws xob ntawm 15 feem pua. Siv tus kais hloov pauv hloov qhov voltage. Thaum hloov qhov hluav taws xob, koj yuav tsum xub txiav tawm lub hwj huam mov, thiab tom qab ntawd tshem tawm lub tshuab cua ntawm tus kais hloov ntawm lub thawv phab ntsa kom hloov cov kais dej.

2. Qhov qis-voltage sab ntawm lub transformer yog tso cai rau kev cob cog rua nyob rau hauv ib tug "Y" duab los ua ib tug 690-volt fais fab mov, thiab kuj yuav txuas mus rau ib tug 400-volt fais fab mov. Nyob rau hauv lub thawv cable hlws ris, lub thib ob terminals yog ncaj qha coj mus rau 6 lub tes tsho porcelain rau cov neeg siv kev hloov kho.

3. Tag nrho cov transformer yog hoisted los ntawm kev siv cov lugs welded ntawm lub thawv phab ntsa. Hauv qab ntawm lub thawv transformer yog nruab nrog trolley brackets, thiab muaj mounting qhov ntawm lub brackets, uas yuav siv tau rau nruab mine trolley rollers nyob rau hauv mines.
