35KV Peb Theem Roj Txias Distribution Transformer
video
35KV Peb Theem Roj Txias Distribution Transformer

35KV Peb Theem Roj Txias Distribution Transformer

Qauv: S9 / S11 / S13
Kev ntsuas hluav taws xob: 6KV / 10KV / 35KV
Ambient kub: -25 degree -+40 degree
Muaj peev xwm xaiv tau: 50/80/100/125/160/200/250/315/400/500/630/800/1000/
1250/1600/2000/2500/3150/4000KVA muaj

Xa kev nug

Muaj nuj nqi

Khoom Description


2-YEAR WARRANTY

Peb tus thawj tswj hwm kev muag khoom Grace nrog 10- xyoo kev xa tawm transformer exporter kev

Yuav Pab Koj Ua Cov Kev daws teeb meem thiab kev xa khoom xa tuaj

Hu rau Grace tam sim no!


35KV Peb Theem Roj Txias Distribution Transformer yog hom tshiab ntawm kev ua haujlwm siab nrog cov qauv tsim nyog thiab kev ua haujlwm zoo dua. Nws siv cov roj ua cov txheej txheem rwb thaiv tsev tseem ceeb ntawm lub tshuab hloov pauv thiab tso siab rau cov roj raws li qhov nruab nrab cua txias, xws li roj-immersed nws tus kheej-txias, roj-immersed cua-txias, roj-immersed dej-txias thiab quab yuam roj ncig, thiab lwm yam.


35KV Peb Theem Roj Txias Distribution Transformers feem ntau tsim nyog rau kev hloov pauv hluav taws xob hauv nroog thiab cov chaw nyob deb nroog, kev lag luam thiab kev lag luam mining, thiab tsim nyog rau Combined transformers thiab transformers rau prefabricated substations.


Lub npe khoom: 35KV Peb Theem Roj Filled Distribution Transformer

Qauv: S9/S11/S13/S15

Rated Voltage: 6KV / 10KV / 11KV / 22KV / 33KV / 35KV / 36KV Lub zog muaj zog

Ambient kub: -25 degree -+40 degree

Muaj peev xwm xaiv tau: 50/80/100/125/160/200/250/315/400/500/630/800/1000/1250/1600/2000/2500/3150/4000/5000/6000

MAX mus txog 10MVA

-2


Khoom Parameter



 Technical Parameter rau S11 Series 35kV Fais Fab Transformer Nrog Tawm Circuit Tap Changer

QauvVoltage kev sib xyawConnection Group SymbolTsis muaj load poob (W) 75 degreeLoad Loss R (W)Lub zog impedance (%)Tsis muaj load tam sim no (%)Ntev L (mm)Qhov dav W (mm)Qhov siab H (mm)Gauge Kab rov tav * Vertical (mm)Qhov hnyav hnyav (Kg)Roj Qhov hnyav (Kg)Qhov hnyav tag nrho (Kg)
Qhov hluav taws xob siab (kV)Tapping Range ntawm High Voltage%Tsawg voltage (kV)
5035
±5%		±2×2.5%0.4Dyn11/Yyn01601200/11406.51.311959351825660*660300330860
38.5










1002302010/1910
1.112009951935660*6604703831130
1252702370/2260
1.112359401955660*6605504651335
1602802820/2680
112858951950660*6605804851475
2003403320/3160
1131011501985660*6606805951755
2504003950/3760
0.95145010902010660*6608606502000
3154804750/4530
0.95193010652320820*8209807652290
4005805740/5470
0.85185011652015820*82011708852725
5006806910/6580
0.85204512052415820*82013409603090
6308307860
0.65208512402515660*66015508953810
8009809400
0.65230516152685820*820199010304510
1000115011500
0.652545154025901070*1070241514755055
1250140013900
0.6249520102675820*820248014055290
1600169016600
0.6268021002770820*820260014905450
2000199019700
0.55279021802860820*820272015905600
2500236023200
0.552900229029801070*1070283017205760


S11 Series 35kV 630kVA -31500kVA Peb-theem Dual Winding Fais Fab Transformer Nrog Tawm Circuit Tap Changer

QauvVoltage kev sib xyawConnection Group SymbolTsis muaj load poob (W)Load Loss R (W)Tsis muaj load tam sim no (%)luv Circuit Court impedance (%)Ntev L (mm)Qhov dav W (mm)Qhov siab H (mm)Gauge Kab rov tav * Vertical (mm)Qhov hnyav hnyav (Kg)Roj Qhov hnyav (Kg)Qhov hnyav tag nrho (Kg)
Qhov hluav taws xob siab (kV)Tapping Range ntawm High Voltage%Tsawg voltage (kV)
63035±2×2.5%±5%3.15
6.3
10.5		Yd 1183078600.656.5240017002210820*82022109003250
80098094000.65250018502390820*820235010303500
1000115011500.65270019502510820*820249011803860
1250140013900.55290020502630820*820260013504350
1600169016600.45305021302750820*820281015804855
2000217018300.453105219528051070*1070280018005300
2500256019600.453150253529801070*1070352520607665
315035-38.5±2×2.5%±5%3.15
6.3
10.5		304023000.4573920272528401070*1070399522058565
4000361027300.453310291530701070*10704825256010115
5000432031300.453480302031451070*10705700263511305
6300524035000.458
10		3590290532101475*14757120324013510
800035-38.5±2×2.5%3.15 3.3
6.3
6.6
10.5		YNd 11720038400.354070305035951475*14758875384016690
10000870045300.354106279536552000*147510305360017690
12500100053800.34570301038401475*147512830431020990
16000121065800.35235329546152000*147516010665027660
20000144079500.35360341546602000*147518820760032170
25000170094000.255830381048602000*147522360980042600
3150020201120000.256290429052602000*1475251101201049960


Peb Daim Ntawv Pov Thawj



CERTIFICATE 800-400

Project Case



PROJECT CASE 800

Peb lub Hoobkas

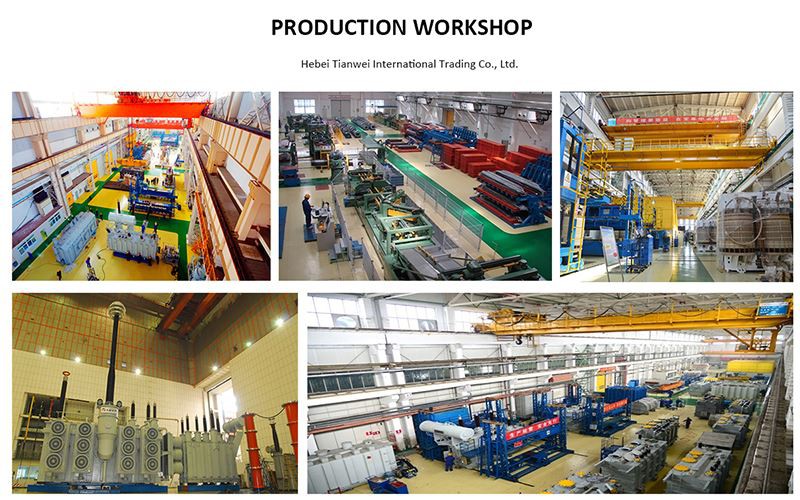

PRODUCTION WORKSHOP 800

Hebei Tianwei International Trading Co., Ltd. Ltd muaj 14 xyoo ntawm kev paub nyob rau hauv thoob ntiaj teb lub zog tej yaam num thiab tau pab ntau tus neeg muas zaub thoob ntiaj teb ua tiav tej yaam num fais fab. Piv txwv li, Russia, Uzbekistan, Indonesia, Algeria, Morocco, Zimbabwe, Ghana, Yemen, Ethiopia, Nigeria, Kenya, Cameroon, Madagascar, New Zealand, Zambia, Nyab Laj, Is Nrias teb, Malaysia, Laos, Tanzania, Guatemala, Turkmenistan, South Africa , Rwanda, Oman thiab lwm yam Tianwei kuj tuaj yeem muab kev pabcuam zoo tom qab muag, yog li yog tias koj xav tau transformer, koj tuaj yeem tiv tauj peb.


Vim Li Cas Xaiv Peb



 Peb Qhov Kev Pabcuam

1.

Kev muag khoom ua ntej

a.

Ua kev daws teeb meem.

b.

Xa quotation, technical data sheet thiab kos duab.

c.

Npaj cov phiaj xwm xa hluav taws xob, phiaj xwm kev sim, thiab phiaj xwm xa khoom.

2.

Hauv kev muag khoom

a.

Saib xyuas lub sijhawm tsim khoom tag nrho raws li txoj kev npaj.

b.

Xa cov duab rau cov neeg siv khoom thaum txhua txoj kev tsim khoom (tuav taw tes).

c.

Qhia rau tus neeg siv khoom ib lub lim tiam ua ntej kuaj.

3.

Kev pab cuam tom qab muag

a.

Installation thiab commissioning.

b.

Kev cob qhia tus neeg ua haujlwm.

c.

Squick teb hauv 12 teev txhua lub sijhawm.

d.

Muab 12 lub hlis lav lav ib txwm.
