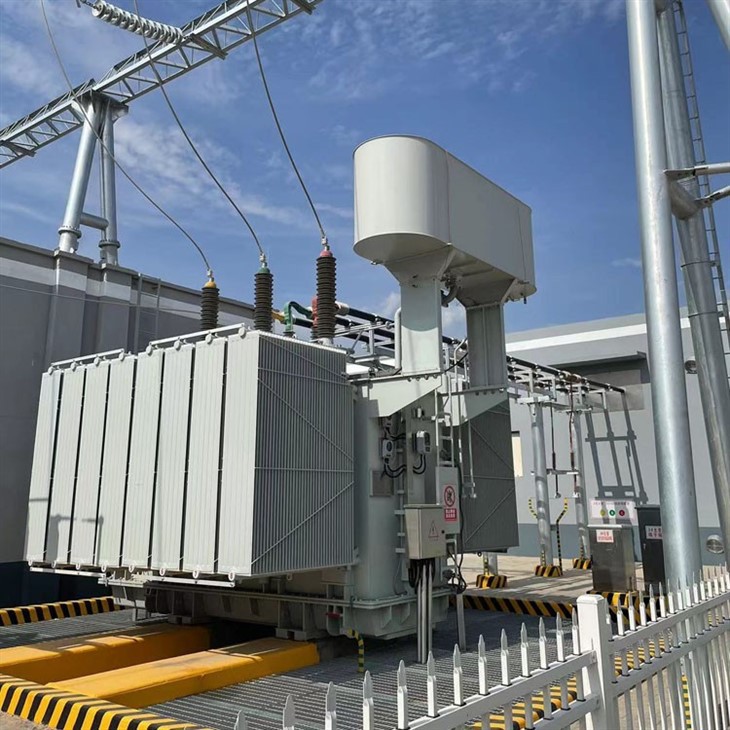

20 MVA Fais Fab Transformer
Rated peev: 16/20 MVA
Hom: Core hom roj raus
No. of Phase: 3
Zaus: 50HZ
Qhov chaw: Sab nraum zoov
Hom cua txias: ONAF
Hom roj: Mineral roj
Rated voltage: HV Winding 33 KV (± 10%) LV Winding 11-6.6 KV (± 10%)
Muaj nuj nqi
Lub 33/11KV 16/20 MVA Fais Fab Transformer yog ob txoj hlua, 3 theem roj immersed core hom nrog ONAN / ONAF cua txias haum rau sab nraum zoov kev pab cuam raws li kauj ruam-down transformer.
16/20 MVA transformer txhais tau tias 20 MVA yog tag nrho cov peev xwm thiab 16 MVA txuas ntxiv muaj peev xwm.
|
Rated peev |
16/20 MVA |
|
Hom |
Core hom roj raus |
|
Tsis muaj theem |
3 |
|
Ntau zaus |
50 HZ |
|
Qhov chaw |
Sab nraum zoov |
|
Hom cua txias |
ONAF |
|
Hom roj |
Mineral roj |
|
Rated voltage |
HV Winding 33 KV (± 10%) LV Winding 11-6.6 KV (± 10%) |
|
Cov cim kev sib txuas |
Dyn 11 |
|
Coj mus rhaub changer hom |
Thaum load |
|
Tapping |
+10% rau -10% |
|
Temp. nce (dhau ambient) hauv roj |
45 degree |
|
Temp. nce (dhau ambient) hauv Winding |
55 degree |
|
Hom winding |
Muab ob npaug rau tooj liab |
|
20 MVA Fais Fab Transformer Dimensions |
4200 * 3000 * 3200 hli |
|
Tus nqi npaum li cas 20MVA Transformer |
Pls xa lus nug rau peb, yuav hais lus rau koj hauv 24 teev raws li koj qhov kev xav tau |
20 MVA Fais Fab Transformer yog qhov ua tau zoo thiab txhim khu kev qha transformer tsim los xa cov hluav taws xob sib kis tau zoo thiab kev faib tawm. Lub tshuab hluav taws xob no yog tsim los nrog cov thev naus laus zis siab tshaj, cov ntaub ntawv zoo tshaj plaws, thiab kev ua haujlwm zoo tshaj plaws los xyuas kom meej qhov ua tau zoo thiab ua haujlwm ntev.
Cov yam ntxwv ntawm 20 MVA Fais Fab Transformer suav nrog kev muaj peev xwm siab, kev ua haujlwm tsis tshua muaj suab nrov, thiab hloov pauv lub zog. Nws kuj tseem tsim los tiv thaiv huab cua hnyav, qhov kub thiab txias, thiab qhov hloov pauv ntawm qhov hluav taws xob, kom ntseeg tau tias kev ua haujlwm zoo txawm tias nyob rau hauv ib puag ncig nyuaj.
Cov khoom no muaj rau kev yuav khoom los ntawm peb cov txheej txheem kev yuav khoom, uas lav kev xa khoom sai, tus nqi sib tw, thiab kev pabcuam tshwj xeeb rau cov neeg siv khoom. Peb cov kws tshaj lij pab neeg mob siab rau ib txwm muaj los pab txhawb koj thoob plaws hauv cov txheej txheem kev yuav khoom, los ntawm kev xaiv cov khoom mus rau kev xa khoom thiab kev teeb tsa.
Yuav kom yuav 20 MVA Fais Fab Transformer, tsuas yog hu rau peb, thiab peb yuav coj koj mus rau tag nrho cov txheej txheem, los ntawm kev xaiv txoj cai transformer kom ntseeg tau tias nws ua tau raws li koj cov kev xav tau tshwj xeeb thiab pob nyiaj siv. Peb muaj nuj nqis rau peb cov neeg siv khoom thiab siv zog los muab cov kev pabcuam zoo tshaj plaws kom ntseeg tau tias koj txaus siab.
