200 KVA Ncej Mounted Distribution Transformer

200 kVA Ncej Mounted Transformer Nqe lus piav qhia:

Rated zog: 200kva

Kev ntsuas hluav taws xob: 11 / 0.4 kV

Rated Tam sim no: 10.5 / 288.68 A

Rated Zaus: 50 Hz

Tus naj npawb ntawm Theem: 3 theem

Cov cim kev sib txuas: Dyn11

Txoj kev txias: ONAN

Rwb thaiv tsev Class: A

Rwb thaiv tsev: LI75 AC28 / LIA

HV & LV winding khoom:Tooj

Daim Ntawv Pov Thawj: IEC 60076

Kev tswj hluav taws xob: ± 2 * 2.5 feem pua

Maximum Ambient Kub: 50 degree

Qhov siab tshaj plaws kub nce rau roj: 50 degree

Qhov siab tshaj plaws kub nce rau winding: 55 degree

Tsis muaj load poob: 500W

Copper poob (ntawm 75 degree): 2400W

Impedance Voltage (IEC Tolerance Applied): 4 feem pua

Hom Transformer: Hermetically kaw

Luj roj: 160 kg

Tag nrho qhov hnyav ntawm transformer: 880 kg

Tag nrho qhov ntev (L x W x H)Loj: 1320 x 750 x 1170 mm

HV Bushing

LV Bushing

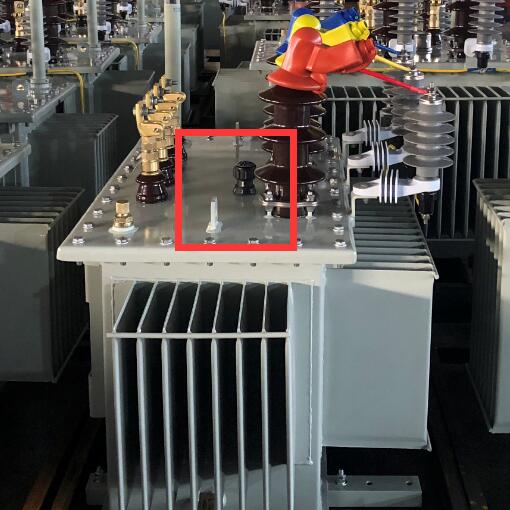

Coj mus rhaub Changer

Kev xa khoom

200 kVA Ncej Mounted Transformer shipping 1

200 kVA Ncej Mounted Transformer shipping 2
