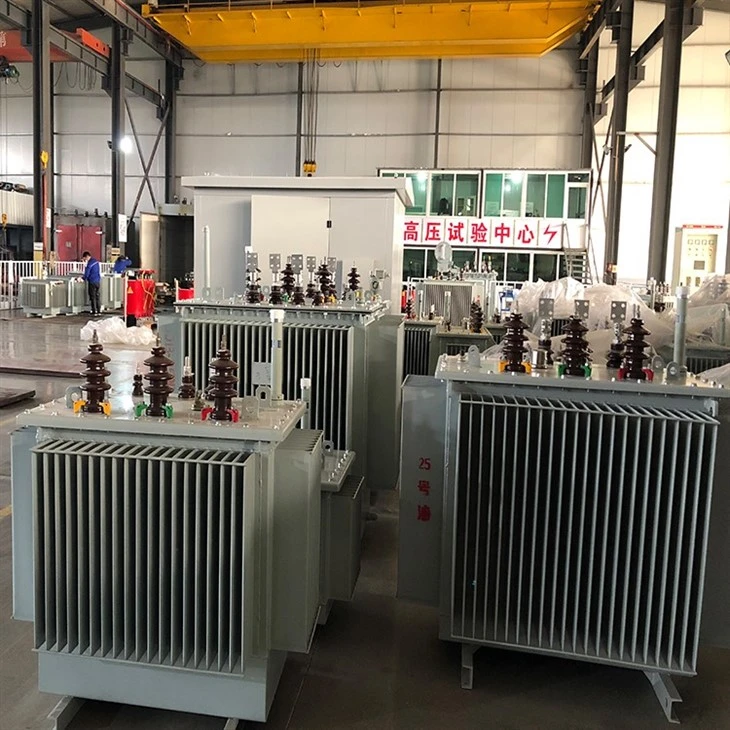

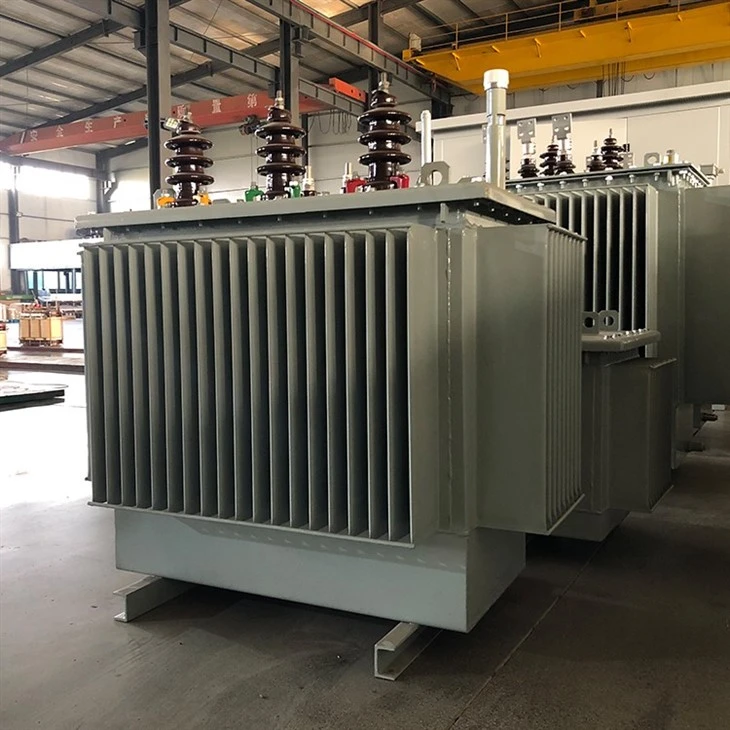

3 Theem 400 KVA Transformer

2-YEAR WARRANTY
Peb tus thawj tswj hwm kev muag khoom Grace nrog 10- xyoo kev xa tawm transformer exporter kev
Yuav Pab Koj Ua Cov Kev daws teeb meem thiab kev xa khoom xa tuaj
Hu rau Grace tam sim no!

Khoom Parameters:
Rated Peev Xwm: 400KVA
Theem: Peb theem
Thawj Voltage: 10KV
Secondary voltage: 400V
Zaus: 50Hz
Txoj kev txias: Roj-immersed
400 KVA Transformer Tag Nrho Tam Sim No: 23.1 / 577.4A
Rwb thaiv tsev Class: A
Kais Changer: ± 2x2.5%
Vector Group: Dyn11
Rwb thaiv tsev: HV Terminal LI / AC 75 / 35kV
LV Terminal AC 5 kV 2
400 KVA Transformer Loj: 1350 * 960 * 1070mm
400KVA Transformer Nyhav: 1250kg

Test Report

Product Advantages:
High Efficiency: Peb 3 Theem 400 KVA Transformer boasts qhov kev ua tau zoo ntawm 96.5%.
Kev Txhim Kho Kev Ua Haujlwm: Nrog nws cov khoom siv ruaj khov thiab cov khoom siv ruaj khov, peb lub tshuab hloov pauv yog tsim los rau kev lag luam txhim khu kev qha thiab kev saib xyuas tsawg.
Precise Voltage Regulation: Peb lub tshuab hloov hluav taws xob yog tsim los xa cov kev tswj xyuas qhov hluav taws xob, kom ntseeg tau tias kev ua tau zoo thiab ruaj khov.
Kev nyab xeeb thiab ruaj ntseg: Peb lub tshuab hloov hluav taws xob tau nruab nrog ntau yam kev nyab xeeb, suav nrog kev tiv thaiv thermal thiab kev tiv thaiv overload, kom muaj kev nyab xeeb thiab ruaj ntseg.

Khoom Paub meej:
- Enclosure: Peb 3 Theem 400 KVA Transformer tuaj nyob rau hauv ib lub thawv roj-immersed uas yuav pab kom dissipate tshav kub thiab ntev lub neej ntawm chav tsev.
- Winding Design: Peb lub tshuab hloov pauv muaj cov qauv tooj liab winding uas ua kom muaj txiaj ntsig zoo tshaj plaws thiab kev ntseeg siab.
- Cov ntaub ntawv rwb thaiv tsev: Peb lub tshuab hluav taws xob siv cov khoom siv rwb thaiv tsev zoo.
- Accessories: Peb lub tshuab hloov pauv tuaj nrog ntau yam khoom siv, suav nrog cov kab txuas txuas, phau ntawv siv thiab daim ntawv pov thawj lav.

Kev pab cuam tom qab muag:
- Warranty: Peb muab 2- xyoo lav rau tag nrho peb cov transformers, npog txhua yam kev tsim khoom lossis qhov tsis zoo.
- Kev Pabcuam Kev Pabcuam: Peb pab pawg kws tshaj lij muaj peev xwm muab kev txhawb nqa thiab kev pabcuam nrog kev teeb tsa, kev ua haujlwm thiab kev saib xyuas.
- Spare Parts: Peb muab ntau yam ntawm cov khoom seem thiab cov khoom siv rau peb cov transformers, kom ntseeg tau tias koj cov cuab yeej siv tau zoo.

Hauv kev xaus, peb 3 Theem 400 KVA Transformer yog ib qho kev txhim khu kev qha thiab muaj txiaj ntsig zoo rau koj cov kev xav tau ntawm lub zog. Nrog nws txoj kev tsim kho, kev tswj xyuas qhov tseeb thiab ntau yam kev nyab xeeb, nws muaj kev nyab xeeb thiab kev nyab xeeb rau txhua qhov koj xav tau lub zog. Ntxiv rau, nrog peb cov kev txhawb nqa tom qab muag tag, koj tuaj yeem paub tseeb tias koj cov peev nyiaj tau txais kev tiv thaiv thiab khaws cia rau xyoo tom ntej.

Cim npe nrov: 3 theem 400 kva transformer, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, yuav, nqi, kev muag khoom
