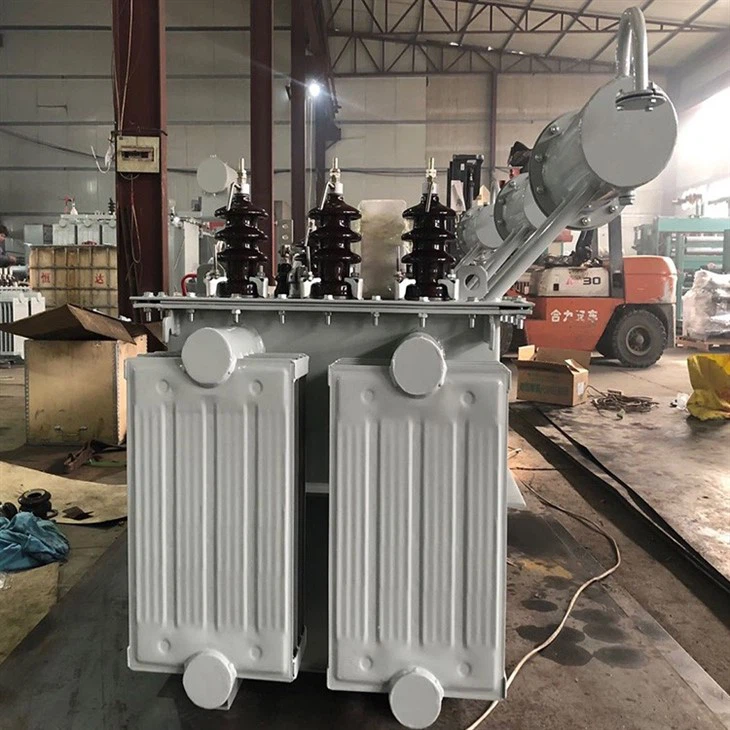

63KVA Transformer 1

Daim Ntawv Pov Thawj: IEC 60076
Transformer ntsuas: 63 kVA
Number of Phase: 3
Thawj qhov hluav taws xob: 11000V
Secondary voltage: 400/230V
Impedance: 4%

Xa kev nug

Muaj nuj nqi

Khoom Taw Qhia:
Peb 63KVA transformer yog lub tshuab hluav taws xob muaj txiaj ntsig thiab txhim khu kev qha uas ua rau muaj ntau yam kev lag luam thiab kev lag luam. Tsim thiab tsim nrog cov neeg siv khoom xav tau hauv siab, qhov hloov pauv no muab kev ua haujlwm tshwj xeeb, ua haujlwm ntev, thiab ntau yam.

Technical Datasheet:

Hom Transformer	Roj Immersed Hermetically kaw hom
Siv tau Standard	IEC 60076: Ua
Nominal transformer ntsuas	63kv ua
Kev ntsuas tam sim no Ntawm 63 KVA Transformer	3.31A/90.1A
Tus naj npawb ntawm Phase	3
Nominal Primary voltage	11000V
Nominal Secondary voltage	400/230V
Impedance	4%
Vector pawg	Dyn 11
Ntau zaus	50 Hz
Txias System	ONAN
Rwb thaiv tsev cov ntaub ntawv qib HV LV Winding	Chav Kawm A
Off-Load tappings ntawm lub hauv paus	Tag nrho cov hauj lwm: 5 Tapping ntau yam: ± 2 x ± 2.5%
Siab tshaj qhov System Voltage	Thawj qhov voltage: 12kV Secondary voltage: 440V
63 KVA Transformer Load Capacity nyob rau hauv Ampere	3.31A/90.1A
Hom kev teeb tsa	Sab nraum zoov
Ambient kub	50 degree
Qhov nruab nrab winding kub nce	55 degree
Sab saum toj roj kub nce	55 degree
Maximum winding hotspot kub	118 degree
HV / LV winding khoom	Tooj
Cov khoom siv tseem ceeb	Cold Grain Oriented Silicon Steel
Warranty	24 hli
63 KVA 3-Phase Transformer Nqe	USD1*71.00/SET

Khoom nta:
- High-efficiency tsim los txo qis zog poob thiab ua kom cov zis ntau tshaj
- Kev tsim kho muaj zog nrog cov ntaub ntawv qib siab rau siab tshaj plaws durability thiab lub neej ntev
- Sophisticated tiv thaiv mechanisms tiv thaiv cov cuab yeej tiv thaiv hluav taws xob tsis ua hauj lwm
- Kev yoog tau zoo thiab kho tau kom tau raws li ntau hom kev siv thiab kev qhia tshwj xeeb
- Ib qho yooj yim rau nruab thiab tswj nrog cov lus qhia meej thiab cov neeg siv-phooj ywg interfaces

Cov qauv khoom:
Lub transformer yog tsim los ntawm cov ntaub ntawv zoo thiab cov khoom uas ua tau raws li cov qauv kev lag luam nruj. Nws nta cov tub ntxhais tooj liab winding uas txhim khu kev ua tau zoo thiab txo qis zog, nrog rau cov khoom siv hluav taws xob qib siab kom txo tau qhov muaj feem cuam tshuam ntawm hluav taws xob los yog kev puas tsuaj. Lub transformer kuj tau nruab nrog ntau yam kev tiv thaiv mechanisms uas muab kev nyab xeeb thaum muaj hluav taws xob tam sim ntawd lossis hluav taws xob surges.

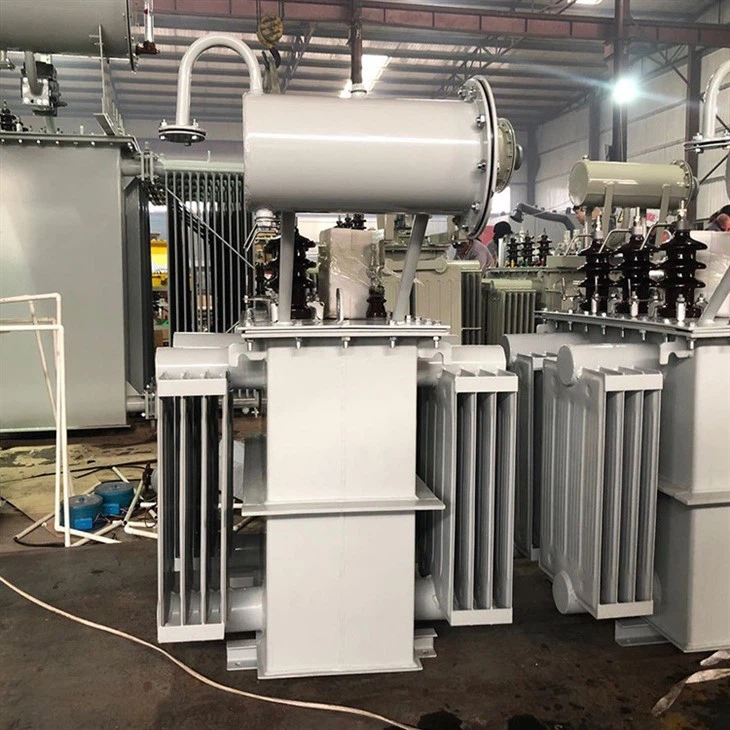

63KVA Transformer Details

Khoom ntim:
Lub transformer yog ntim ruaj ntseg nrog cov khoom siv ruaj khov uas ua kom muaj kev nyab xeeb kev thauj mus los thiab tuav. Cov khoom yog ua tib zoo kaw thiab ntim nrog cov khoom ntim customized uas tsim los tiv thaiv cov khoom los ntawm kev puas tsuaj thaum thauj thiab khaws cia.

rack packaging

wooden case packaging

R & D txheej txheem:
Peb lub transformer yog tsim los ntawm ib tug nruj kev tshawb fawb thiab kev loj hlob txheej txheem uas muaj xws li kev lag luam kev tshawb fawb, ib theem tsim, thiab nruj kev ntsuam xyuas thiab validation. Peb koom nrog kev tshuaj xyuas tag nrho ntawm cov neeg siv khoom xav tau thiab cov qauv kev lag luam kom ntseeg tau tias peb cov khoom ua haujlwm rau ntau yam kev xav tau ntawm peb cov neeg siv khoom. Cov txheej txheem R & D yog ua los ntawm ib pab pawg kws tshaj lij thiab cov kws tshaj lij nrog kev paub dhau los hauv thaj chaw.

RD Process
