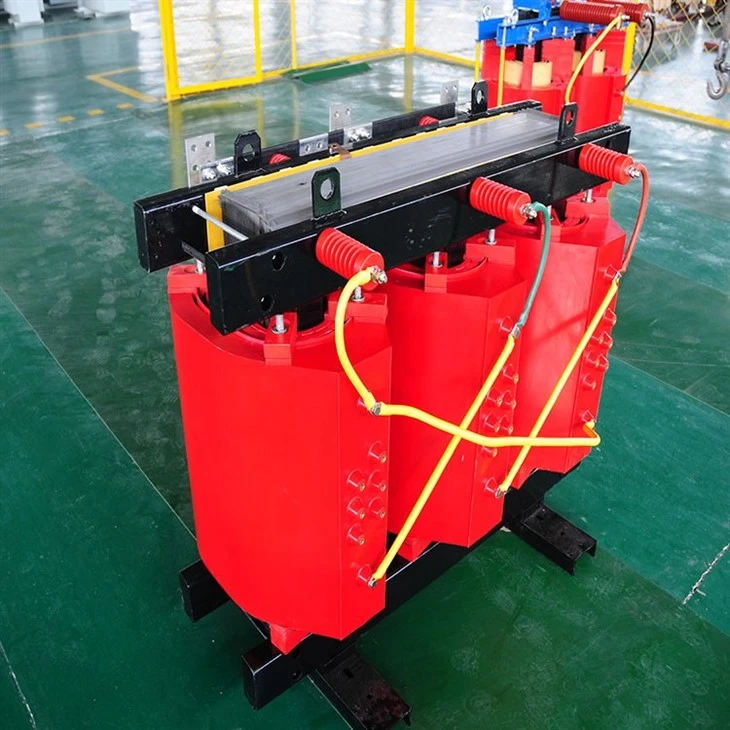

63 KVA Qhuav Hom Transformer
Khoom npe: 63 KVA Qhuav Hom Transformer
Cov qauv khoom: SCB13-63/10±2*2.5%-0.4
63 KVA Transformer Amps: 3.6A / 90.9A
Rated muaj peev xwm: 63KVA
Rated zaus: 50Hz
Muaj nuj nqi
Khoom Description
Khoom npe: 63 KVA Qhuav Hom Transformer
Cov qauv khoom: SCB13-63/10±2*2.5%-0.4
63 KVA Transformer Amps: 3.6A / 90.9A
Rated muaj peev xwm: 63KVA
Rated zaus: 50Hz
Voltage regulation mode: tsis-excitation voltage regulation
Siab regulating txoj hauj lwm: siab siab sab
Kev hloov pauv voltage: 10KV ± 2.5%
Qhov hnyav ntawm 63 KVA Transformer: 480kg
63 KVA 3-Phase Transformer Nqe: USD2 * 71.00/SET
63 KVA Dry Type Transformer muaj kev nyab xeeb, nplaim hluav taws thiab tiv thaiv hluav taws, thiab tuaj yeem ntsia ncaj qha rau hauv qhov chaw thauj khoom. Kev tu-dawb thiab yooj yim rau nruab. Nws muaj kev ua haujlwm zoo noo noo-pov thawj thiab tuaj yeem muab tso rau hauv kev ua haujlwm yam tsis muaj kev ziab ua ntej tom qab kaw. Nws muaj qhov poob qis, tsis tshua muaj paug, tsis tshua muaj suab nrov, thiab tuaj yeem ua haujlwm ntawm 120% rated load nyob rau hauv yuam cua txias. Peb muaj qhov ua tiav qhov ntsuas kub tiv thaiv kev tiv thaiv kom muaj kev ruaj ntseg lav rau kev ua haujlwm nyab xeeb ntawm lub tshuab hloov pauv.
Qauv Specifications
10/0.4KV Qhuav Hom Transformer:
|
SCB13-30/10-0.4 |
SCB13-50/10-0.4 |
SCB13-63/10-0.4 |
SCB13-80/10-0.4 |
SCB13-100/10-0.4 |
|
SCB13-125/10-0.4 |
SCB13-160/10-0.4 |
SCB13-200/10-0.4 |
SCB13-250/10-0.4 |
SCB13-315/10-0.4 |
|
SCB13-400/10-0.4 |
SCB13-500/10-0.4 |
SCB13-630/10-0.4 |
SCB13-800/10-0.4 |
SCB13-1000/10-0.4 |
|
SCB13-1250/10-0.4 |
SCB13-1600/10-0.4 |
SCB13-2000/10-0.4 |
SCB13-2500/10-0.4 |
SCB13-3150/10-0.4 |
|
SCB13-4000/10-0.4 |
SCB13-5000/10-0.4 |
SCB13-6300/10-0.4 |
SCB13-8000/10-0.4 |
SCB13-10000/10-0.4 |
35/0.4KV Dry-Type Transformer:
|
SCB13-30/35-0.4 |
SCB13-50/35-0.4 |
SCB13-63/35-0.4 |
SCB13-80/35-0.4 |
SCB13-100/35-0.4 |
|
SCB13-125/35-0.4 |
SCB13-160/35-0.4 |
SCB13-200/35-0.4 |
SCB13-250/35-0.4 |
SCB13-315/35-0.4 |
|
SCB13-400/35-0.4 |
SCB13-500/35-0.4 |
SCB13-630/35-0.4 |
SCB13-800/35-0.4 |
SCB13-1000/35-0.4 |
|
SCB13-1250/35-0.4 |
SCB13-1600/35-0.4 |
SCB13-2000/35-0.4 |
SCB13-2500/35-0.4 |
SCB13-3150/35-0.4 |
|
SCB13-4000/35-0.4 |
SCB13-5000/35-0.4 |
SCB13-6300/35-0.4 |
SCB13-8000/35-0.4 |
SCB13-10000/35-0.4 |
35/10KV Qhuav Hom Transformer:
|
SCB13-30/35-10 |
SCB13-50/35-10 |
SCB13-63/35-10 |
SCB13-80/35-10 |
SCB13-100/35-10 |
|
SCB13-125/35-10 |
SCB13-160/35-10 |
SCB13-200/35-10 |
SCB13-250/35-10 |
SCB13-315/35-10 |
|
SCB13-400/35-10 |
SCB13-500/35-10 |
SCB13-630/35-10 |
SCB13-800/35-10 |
SCB13-1000/35-10 |
|
SCB13-1250/35-10 |
SCB13-1600/35-10 |
SCB13-2000/35-10 |
SCB13-2500/35-10 |
SCB13-3150/35-10 |
|
SCB13-4000/35-10 |
SCB13-5000/35-10 |
SCB13-6300/35-10 |
SCB13-8000/35-10 |
SCB13-10000/35-10 |
Nta
1. Lub coil yog qhov txhab nrog tooj liab hlau lossis ntawv ci, ntxiv nrog cov iav fiber ntau, thiab epoxy resin yog lub tshuab nqus tsev qhuav, degassed, thiab dehumidified yam tsis muaj fillers thiab nrum tag nrho. Nws muaj zog txhua yam muaj zog, luv luv Circuit Court kuj, thiab muaj zog cuam tshuam tsis kam.
2. Thawj qhov kawg ntawm cov high-voltage winding thiab nruab nrab kais tau txais cov tooj liab embedded embedded qauv, uas muaj zoo rigidity, yooj yim rau kev hloov kho iav, thiab zoo nkauj thiab zoo nkauj.
3. Cov tub ntxhais hlau yog ua los ntawm cov khoom lag luam zoo-taw qhia kom txias-kuav los tiag silicon steel los xij, nrog 4-degree tag nrho inclined ntau kauj ruam pob qij txha. Qhov saum npoo yog them nrog resin insulating txheej, uas yog noo noo-resistant, xeb-pov thawj thiab suab nrov-txo.
4. Elastic qhov chaw yog siv los clamp cov tub ntxhais hlau, clamps thiab coils kom cov coils nyob rau hauv lub xeev ruaj khov thiab compressed kom tsis txhob muaj suab nrov.
5. Lub transformer yog tsim los ua nws tus kheej txias. Lub qhov cua qhov ntev ntev yog khaws cia rau hauv phab ntsa ntawm qhov sib xyaw ua ke cam khwb cia siab (tsawg) voltage coil chim. Nws tuaj yeem nruab nrog lub tshuab cua txias (txias cua txias). Tom qab siv lub tshuab cua txias, lub peev xwm tso zis tuaj yeem nce ntxiv los ntawm 20%.
6. Nruab nrog lub ntsuas kub, tso lub platinum resistor (Pt100) nyob rau hauv lub pre-embedded qhov nyob rau sab saum toj ntawm lub low-voltage coil. Nws saib xyuas qhov kub thiab txias ntawm transformer winding, cia li pib thiab nres lub kiv cua txias, thiab muaj lub tswb txhaum, tshaj-kub tswb thiab over-temperature mus txawv tebchaws functions los muab ib tug txhim khu kev qha overload tiv thaiv ntaus ntawv rau qhuav-hom transformer, yog li txhim kho lub kev nyab xeeb ntawm kev ua haujlwm qhuav-hom transformer.
Cov Khoom Siv Khoom
1. Cov tub ntxhais hlau: Cov tub ntxhais hlau yog ua los ntawm cov khoom zoo siab txias-kuav los tiag silicon steel los xij, nrog rau peb theem siab oblique sib koom ua ke. Cov kab tseem ceeb yog khi nrog F-qib weft-dawb daim kab xev, thiab qhov saum npoo ntawm cov tub ntxhais hlau yog encapsulated nrog epoxy resin kom tsis txhob poob. Nqa cov suab nrov tam sim no thiab hlau, cov clamps thiab fasteners tau dhau los kho qhov chaw tshwj xeeb, uas ntxiv txhim kho qhov zoo ntawm cov khoom.
2. Kev tswj qhov kub thiab txias qhov system: Siv lub tshuab hluav taws xob hla saum toj kawg nkaus. Cov kiv cua txias no muaj cov yam ntxwv ntawm lub suab qis, siab cua siab, thiab zoo nkauj zoo nkauj, uas ua rau lub peev xwm dhau ntawm lub transformer. Kev tswj qhov kub thiab txias tau txais kev tswj xyuas qhov kub thiab txias, uas txhim kho kev ua haujlwm ruaj khov ntawm lub transformer.
3. Lub plhaub tiv thaiv thiab qhov hluav taws xob busbar: Lub plhaub tiv thaiv ntxiv tiv thaiv lub tshuab hluav taws xob. Cov qib kev tiv thaiv muaj xws li IP20, IP23, thiab lwm yam. Cov ntaub ntawv plhaub muaj xws li aluminium alloy, txias-dov steel phaj, stainless hlau, thiab lwm yam rau cov neeg siv xaiv. Lub qhov hluav taws xob uas tsis tshua muaj hluav taws xob siv tus qauv busbar qhov hluav taws xob. Ob sab qhov hluav taws xob thiab sab saum toj qhov hluav taws xob muaj. Txoj kev hluav taws xob tshwj xeeb kuj tuaj yeem tsim rau cov neeg siv.
Cov npe khoom
SCB 13 63 KVA Qhuav Hom Transformer Cov Khoom Siv
|
Khoom npe |
Khoom siv |
Cov yam ntxwv zoo |
|
Silicon steel ntawv |
Brand tshiab zoo lis-taw qhia siab magnetic permeability txias-dov silicon steel ntawv |
Cold-dov silicon steel sawb muaj qhov zoo ntawm qhov me me thiab lub teeb yuag thaum siv los ua cov khoom siv hluav taws xob vim nws qhov siab sib nqus permeability thiab poob qis. |
|
Coil |
Tooj |
Cov ntsiab lus tooj liab yog 99.9%. Lub xeev tau hais tias cov tooj liab purity siv los ntawm cov kws hluav taws xob yuav tsum siab dua 99.5%. Brass tuaj yeem siv rau hauv cov hluav taws xob me me uas tsis yog lub zog hloov hluav taws xob, thiab nws siv tsis tsim nyog thiab tsis raug cai. Tsis tas li ntawd, siv tooj dag raws li lub tshuab hloov pauv yuav ua rau cov tooj liab poob (load poob) thiab txo lub zog ntawm lub transformer. |
|
busbar |
||
|
Insulating roj |
Naphthenic ntxhia roj |
Cov kua dej huv thiab pob tshab, tsis muaj sediment, tshem tawm txhua yam impurities thiab cov khoom zoo li paj rwb. Lub xub ntiag ntawm cov roj tsis zoo los yog cov roj theem nrab ua rau cov kev laus ntawm lub transformer, ua kom nrov nrov, ua rau luv luv Circuit Court thiab burnout, thiab muaj lub neej luv luv. |
|
Insulating ntawv |
Kraft daim ntawv / NOMEX rwb thaiv tsev ntawv |
Insulating ntawv yog ib feem tseem ceeb ntawm lub transformer. Ib qho ntawm cov laj thawj tseem ceeb rau kev laus thiab kev kub nyhiab ntawm lub transformer yog kev siv cov ntawv insulating inferior, uas ua rau arc tawg thiab ua rau nws lub neej ua haujlwm luv. |
|
Epoxy cob |
High epoxy value (>40) 6101 epoxy cob |
F / H qib kub tsis kam 155 degree / 180 degree. Kev ntsuas kev ntsuas xws li qhov ntsuas kub tsis kam, siab tsis kam, hardness, shrinkage, dej nqus, iav hloov kub, lub zog sib txuas, thiab lub zog tensile yog qhov tseem ceeb heev rau kev rwb thaiv tsev thiab qhov zoo ntawm cov tshuab ziab khaub ncaws. |
|
Hluav taws xob ntoo |
beech ntoo |
Muaj zog rwb thaiv tsev muaj peev xwm thiab siab tensile zog. |
Khoom Txheem
SCB 13 63 KVA Dry Type Transformer Implementation Standard
1. GB1094.11-2007 Qhuav hom fais fab transformer
2. GB/T10228-2008 Technical parameters and requirements for dry-type power transformers
3. GB1094.
4. JB/T10008-2004 6~ 500KV transformer suab theem
5. JB/T56009-1998 Qhuav-hom fais fab transformer khoom zoo faib
