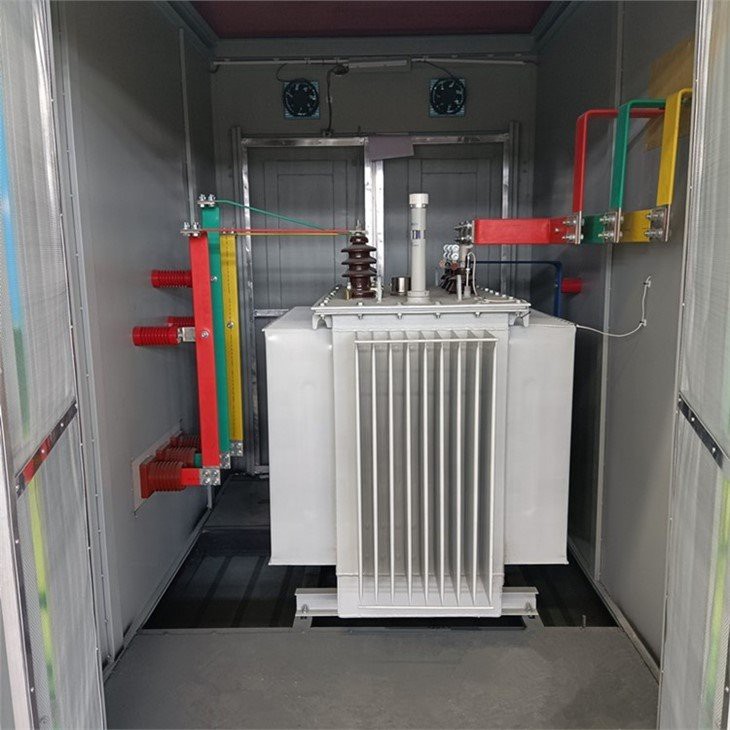

High Voltage HT Electric Switchgear Substation Kiosk

High Voltage HT Electric Switchgear Substation Kiosk

Hom: High Voltage HT Electric Switchgear Substation Kiosk
MOQ: 1 pc
Warranty: 1 xyoo
Kev Pabcuam OEM / ODM: Yog
Ntawv pov thawj: ISO 9001
Shipping: Hiav txwv
Kev Them Nyiaj: T / T

Xa kev nug

Muaj nuj nqi

Lub thawv-hom transformer (feem ntau hu ua "compact substation") cov tsoos transformer yog centrally tsim nyob rau hauv lub thawv-hom plhaub, nrog me me, lub teeb yuag, tsis tshua muaj suab nrov, tsawg poob, siab ntseeg, dav siv nyob rau hauv cov cheeb tsam, coj mus muag. cov chaw, lub teeb chaw nres tsheb, tshav dav hlau, factories thiab mines, kev lag luam, tsev kho mob, tsev kawm ntawv thiab lwm qhov chaw.

Txoj Cai

Raws li cov khoom siv ua tiav, lub thawv compact substation transformer yog cov organic ua ke ntawm transformer, high-voltage voltage tswj cov cuab yeej thiab cov khoom siv hluav taws xob tsawg-voltage. Lub hauv paus ntsiab lus tseem ceeb yog los ntawm lub zog pib, kab armored, substation tsis siv neeg kaw lus, DC system thiab cov khoom siv sib raug zoo, kev sib dhos tsim nyog yog ua raws li kev txiav txim, thiab tag nrho cov khoom raug ntsia rau hauv ib qho dej tsis sib haum, plua plav thiab nas pov thawj. tag nrho lub thawv ntim toughened, yog li tsim ib qho kev hloov pauv. Box-type transformer tau siv dav hauv kev tsim hluav taws xob engineering.

Qhov zoo

1.Vim hais tias cov qauv sab hauv ntawm lub pob substation yog tsim nyog, nws occupies tsawg qhov chaw.

2.Txoj kev ua haujlwm ntawm lub thawv-hom transformer yog yooj yim heev thiab yooj yim, thiab nws yooj yim rau kev sib dhos ceev.

3.Cov ntawv thov ntawm lub thawv transformers yog siab.

4.Lub thawv-hom transformer substation ua ke yog hloov tau.

5.Box-hom ua ke transformer ua haujlwm kev nyab xeeb, ruaj khov siab.

Peb lub Compact Transformer tau zoo ntsia thiab debugged ua ntej xa khoom, uas pab koj txuag lub sijhawm thiab ua kom yooj yim dua.

Cov lus ceeb toom rau kev txiav txim ntawm Prefabricated Substation
1.High voltage:
Txoj kev tuaj: hom davhlau ya nyob twg, hom nplhaib lossis ob lub zog hauv.
Seb puas muaj high voltage metering los yog tsis. Yog tias muaj, txoj hauj lwm ntawm lub ntsuas (pem hauv ntej ntawm qhov hloov lossis tom qab hloov), qhov yuav tsum tau ua ntawm lub ntsuas ntsuas ntsuas thiab nws tus neeg xa khoom raug xaiv los tsis yog.
Hom HV hloov, ib txoj hauv kev yog siv kev sib xyaw ua ke nrog lub tshuab nqus tsev vacuum load hloov thiab lub fuse, uas yog siv thiab kev lag luam; lwm tus yog siv lub disconnector hloov thiab lub tshuab nqus tsev vacuum, uas yog siv rau lub siab muaj peev xwm transformer thiab nrog tus nqi siab dua.
2.Transformer: hom transformer, kev sib txuas pab pawg cim, muaj peev xwm thiab impedance voltage ntawm transformer.
3. Tsawg voltage:
Switch Supplier.
Tus naj npawb ntawm txoj kev tawm mus thiab tus nqi tam sim no ntawm txhua qhov kev hloov mus.
Txawm hais tias muaj cov nyiaj them poob haujlwm lossis tsis yog, yog tias muaj, lub peev xwm ntawm cov nyiaj them poob haujlwm.
Txawm nrog lub metering los tsis. Yog tias muaj, txoj haujlwm tsim nyog.
4. Hom busbar (tooj liab lossis txhuas)
5. Layout ntawm lub substation (txawm hais tias nrog txoj kev khiav hauj lwm txoj kev los yog tsis)
6.Cov khoom ntawm transformer enclosure: composite board (feem ntau siv), steel phaj, stainless board los yog cement.
7.Lub sij hawm xa tuaj rau prefabricated substation.

Compact Substation Specification (saib)

Kev piav qhia		Chav tsev	Cov ntaub ntawv
HV kab	Rated Zaus	Hz	50
	Rated voltage	kV ua	6 10 35
	Max ua haujlwm voltage	kV ua	6.9 11.5 40.5
	Fais fab zaus withstand voltage	kV ua	32/36 42/48 95/118
	(theem mus rau hauv av thiab nruab nrab theem) / disconnector puas	kV ua	32/36 42/48 95/118
	xob laim impulse withstand voltage	kV ua	60/70 75/85 185/215
	(theem mus rau hauv av thiab nruab nrab theem) / disconnector puas	kV ua	60/70 75/85 185/215
	Rated tam sim no	A	400 630
	Rated luv-lub sij hawm tiv taus tam sim no	kA	12.5(2S) 16(2S) 20(2S)
	Rated ncov tiv taus tam sim no	kA	32.5 40 50
LV kab	Rated voltage	V	380 200
	Rated tam sim no ntawm lub ntsiab Circuit Court	A	100-3200
	Rated luv-lub sij hawm tiv taus tam sim no	kA	15 30 50
	Rated ncov tiv taus tam sim no	kA	30 63 110
	Ceg tam sim no	A	10 - 800
	Tus naj npawb ntawm ceg circuits	/	1 - 12
	Kev them nyiaj muaj peev xwm	kVA R	0 - 360
Hloov pauv	Rated peev	kVA ua	50-2000
	hort-circuit impedance	feem pua	4 6
	Tapping ntau	/	± 2.5% ± 5%.
	Kev sib txuas pab pawg cim	/	Yyn0 Dyn11

qauv qauv

Packing & Delivery

Feem ntau, peb yuav siv cov ntoo ntim khoom tsim nyog rau kev thauj mus los ntev xws li kev thauj mus los hauv hiav txwv.Peb kuj tuaj yeem kho cov ntim tshwj xeeb raws li cov neeg siv khoom xav tau.

Vim Li Cas Xaiv Peb

Peb Qhov Kev Pabcuam

1. Ib qho chaw muag khoom.
2. 14 xyoo kev paub dhau los hauv kev lag luam fais fab.
3. Kev tshaj lij online thev naus laus zis txhawb kom ua tiav koj lub zog hluav taws xob daws teeb meem dawb.

4. Kev paub txog kev muag khoom, tus nqi sib tw.

5.Txawm li cas los xij loj lossis me me, peb tuaj yeem muab kev pabcuam ib-rau-ib rau koj.

6. Raws li kev sib nrig sib pab, tsim kev lag luam yeej-yeej
