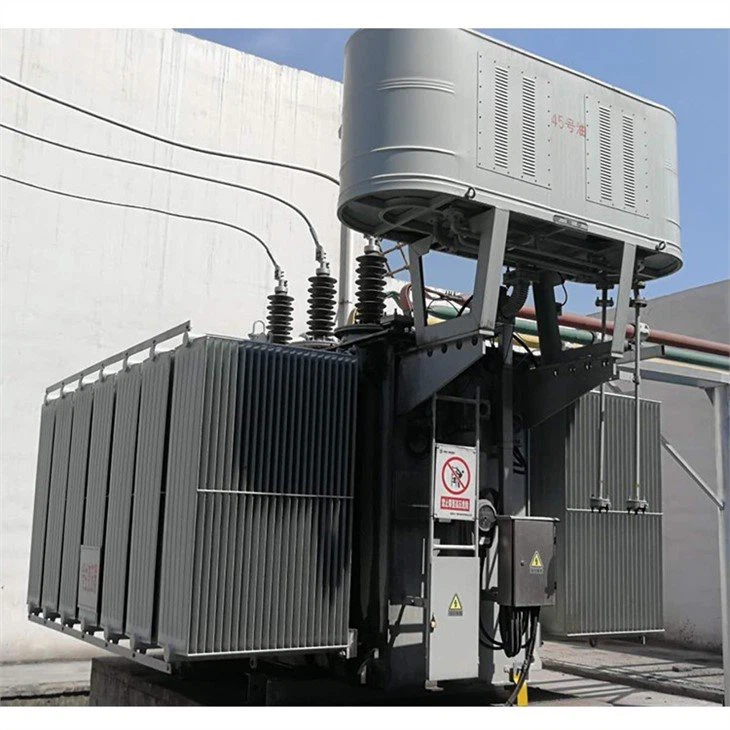

66KV 3 Theem Ob Qhov Cuab Yeej NLTC Kauj Ruam Fais Fab Transformer

High voltage fais fab transformer piv piv ntawm 66KV mus rau 220KV yog cov khoom tseem ceeb ntawm TAINWEI Electric uas muaj ntau yam kom zoo dua ntawm qhov zoo thiab tus nqi. Tag nrho cov khoom tau raug kuaj tag nrho thiab muaj ntawv pov thawj ua ntej xa khoom.

Ntau ntawm peb cov khoom tau raug xa tawm thiab siv nyob rau hauv kev lag luam txawv teb chaws hais txog cov chaw tsim hluav taws xob, substation, ntxhia thiab ore industries.

TIANWEI hluav taws xob muaj npe nrov thiab txaus siab los ntawm nws cov khoom lag luam txhim khu kev qha thiab kev pabcuam kev sib koom ua ke.

Cov ntaub ntawv txuj ci rau 69kV Chav Kawm Peb Theem Ob Qhov Winding NLTC Fais Fab Transformer

Nta:

1) Tus nqi ntawm qhov tso tawm hauv zos: Qhov pom tseeb qhov tso tawm tsawg dua 80pC hauv qab 1.5 npaug ntawm qhov ntsuas hluav taws xob;

2) Suab nrov: Cov khoom ntawm 63MVA thiab hauv qab yog qis dua 58 dB (AN);

3) Lub zog poob: Tsis muaj kev thauj khoom poob yog 30% qis dua li IEC tus qauv;

4) Kev ntseeg tau: Tag nrho cov khoom hauv kev pabcuam tsis muaj kev puas tsuaj lossis cov roj to;

Daim ntawv thov:

60 ~ 220 kV fais fab system ntawm fais fab nroj tsuag, substation, mining enterprise thiab lwm yam.

Tshuab:

Tsim: Cov txheeb ze tsim software raug saws nyob rau hauv Electromagnetic laij teb, lub zog tsom xam, xau magnetic faib, nws electro-dynamic quab yuam thiab hluav taws xob rwb thaiv tsev.

Chaw tsim khoom:

1. Core:

Txhim kho qhov zoo ntawm transformer tsis muaj kev ua haujlwm los ntawm cov hauv qab no:

1) Cov tub ntxhais yog ua los ntawm high-permeable grain-orientated sab saum toj zoo txias-kuav los tiag silicon ntawv thiab cov khoom yog txiav nrog advanced lub teb chaws Yelemees Geoge GmbH tsis siv neeg shear kab nrog cov txiav burs tswj nyob rau hauv 0.02mm.

2) Cov ntaub ntawv silicon tau txais kev siv "tsis muaj-sab saum toj lapped" thev naus laus zis thiab tag nrho cov pob qij txha ntawm cov ntawv silicon yog 45 tag nrho-miters. Cov ntawv laminated tseem ceeb yog sib koom ua ke nrog epoxy resin ua rau peb ceg ob-yoke core. ib tug muaj zog thiab tiaj tus ib tug nrog zoo verticality precision, qhov no zoo txhim kho tsis muaj-load kev ua tau zoo thiab txo cov suab nrov.

3) Bracing daim hlau yog siv los ua kev txhawb nqa ntawm lub kauj kauj thiab sab hauv kauj. Lub yoke hlau yog khi nrog epoxy resin-impregnated iav fiber ntau band, thiab sab qis ntawm cov roj tank yog nruj nrog cov counter-siab bolts. Cov hlau sab saud thiab sab sauv ntawm cov roj tank yog tsau ntawm peb qhov chaw. Li no lub cev hauv lub tank roj tuaj yeem tiv taus qhov kev vibration thaum thauj tsis muaj kev hloov pauv.

2. Cua:

1) Lub high-voltage (HV) coil txais ib tug interleaved-nruam qauv los txhim kho cov yam ntxwv voltage nyob rau hauv tej yam voltage thiab ua voltage tusyees faib. Txhua qhov chaw nyob thiab cov ntaub qhwv yog chamfered kom muaj kev ruaj ntseg zoo heev.

2) Nyob rau hauv lub transformer winding muaj ib tug zigzag roj qhia qauv thiaj li ua kom tag nrho cov cheeb tsam nyob rau hauv lub winding, txo qhov kub thiab txias ntawm winding thiab cov ntsiab lus kub ntawm winding thiab prolong lub neej kev pab cuam ntawm rwb thaiv tsev. Lub HV thiab MV kev tswj hwm ntawm nws tus kheej yog muab los ntawm kev tswj cov hluav taws xob tswj kom sib npaug ntawm ampere tig ntawm txhua qhov winding, txo qis axial electrodynamic quab yuam generated ntawm luv-circuit ntawm transformer thiab txhim kho abrupt short-circuit withstanding peev.

3) Lub winding txais radial "0" margin tsim, nruab nrab ntawm cov tub ntxhais thiab cov ntawv lub tes tsho ntawm LV winding, thiab nruab nrab ntawm LV, HV, voltage-regulating windings, nrog rau ua ntej muab tso rau ntawm qhov chaw nyob thiab shroud phaj lawv yog tag nrho qhuav thiab nruj sib phim kom ntseeg tau zoo heev compactness thiab concentricity ntawm tag nrho winding.

3. Roj tank thiab accessories

1) Lub tank phab ntsa txais cov ntawv dav hlau, uas yuav muab tais rau hauv cov qauv corrugated yam tsis muaj splicing, nyob rau hauv no txoj kev welds yog txo thiab txhua yam muaj zog yog txhim khu kev qha, lub caij no, lub corrugated phab ntsa muaj diverging nyhuv, thiab plays lub luag hauj lwm nyob rau hauv txo suab nrov. . Cov routing troughs thiab tswj cov khoom ntawm lub thib ob Circuit Court yog tag nrho ntawm stainless hlau, yog li tag nrho cov transformer muaj ib tug yooj yim thiab zoo saib.

Peb lub Hoobkas npog thaj tsam ntawm 33,300 square metres, nrog rau tag nrho thaj tsam ntawm 6,100 square meters. Tam sim no muaj 260 tus neeg ua haujlwm, suav nrog 18 tus kws tshaj lij uas tau koom nrog hauv kev tshawb fawb thiab kev tsim cov khoom siv hluav taws xob tau ntau xyoo, thiab 8 tus neeg ua haujlwm zoo tshaj plaws. Nrog rau kev nthuav dav ntawm cov khoom lag luam thiab kev nce ntawm cov khoom lag luam, tam sim no tau tsim los rau hauv lub tuam txhab high-tech tshiab uas muaj peev xwm tsim tau txhua xyoo ntau dua 1000MVA, kev sib koom ua ke tsim, tsim khoom thiab muag khoom ntawm qhib hom qhuav-hom transformers, epoxy. resin cam khwb cia qhuav-hom transformers, amorphous alloy transformers, thiab tshwj xeeb transformers.

1. Muab cov kev daws teeb meem zoo ntim lub zog ntawm lub sijhawm luv tshaj plaws hauv kev lag luam rau cov neeg siv khoom lag luam thiab kev lag luam.

2. Kev tsim khoom thiab muab khoom raws li cov qauv kev lag luam siab tshaj plaws - ISO 9001 thiab SANS.

3. Peb nqis peev los ua kom muaj ntau yam ntawm cov qauv hloov pauv thiab MV switchgear hauv Tshuag - peb muab sai thiab muab kev pabcuam thaum muaj xwm txheej ceev 24/7 kom ntseeg tau tias lub sijhawm poob qis.

4. Peb cov chaw ua haujlwm siab, kev tsim kho vaj tse thiab cov neeg ua haujlwm tau txais kev cob qhia zoo tso cai nrawm, tag nrho ntawm qhov chaw teeb tsa, kev pabcuam thiab kev muaj peev xwm.
