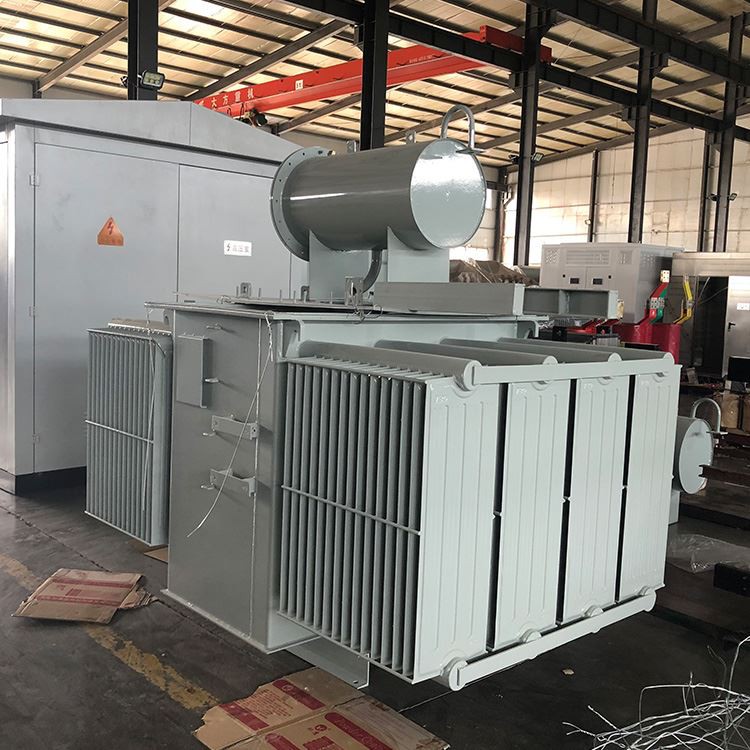

2000 KVA Transformer

Peb-theem transformers ntawm hermetically Sealed, roj immersed hom nrog ntuj (ONAN) txias rau sab hauv tsev installation, tsim rau siv nyob rau hauv peb-theem MV / LV faib systems.

Xa kev nug

Muaj nuj nqi

Khoom Description

2000 KVA Transformer Specification

Peb-theem transformers ntawm hermetically Sealed, roj immersed hom nrog ntuj (ONAN) txias rau sab hauv tsev installation, tsim rau siv nyob rau hauv peb-theem MV / LV faib systems.

2000 KVA Transformer Technical Specification

Rated zog	2000KVA ua
Rated Voltage	1 0/0.4kV
Kev ntsuas tam sim no	115.5/2886.8A
Ntau zaus	50 Hz
Phase naj npawb	peb theem
Coj mus rhaub Changer	±2X2.5%
Vector Group	Dyn 11
Txoj kev txias	UA/AF
2000 KVA Transformer Tag Nrho Tam Sim No	2886.8A
2000 KVA Transformer impedance	4.98%
2000 KVA Transformer Losses
Tsis muaj Load Losses Ntawm 2000 KVA Transformer	2590W
Load Loss	16300W
Rwb thaiv tsev Level	HV LI 75 / AC35kV
	LV AC 5 kV
2000 KVA Transformer Nyhav	5 135kg
2000 KVA Transformer Dimensions	1750 * 1100 * 1860mm

2000 KVA Transformer npe

TEST REPORT

2000 KVA Transformer Test Report

Vim Li Cas Xaiv Peb

1. CEEB TOOM

Yuav kom txais tau, tag nrho peb cov transformer ua raws li cov kev cai ntawm cov lus pom zoo hauv qab no, cov qauv thiab specifications:

Kev siv	Scope
IEC 60076-1	Fais fab Transformers General
IEC 60076-2	Kub nce
IEC 60076-3	Fais fab transformers rwb thaiv tsev theem, dielectric xeem thiab lwm clearances nyob rau hauv huab cua
IEC 60076-4	Fais fab transformer qhia rau xob laim impulse thiab hloov impulse kuaj fais fab transformers thiab reactors
IEC 60076-5	Fais fab transformer muaj peev xwm tiv taus luv luv Circuit Court
IEC 60076-16	Transformers rau kev siv cua turbine
EN 50588-1	Nruab nrab fais fab transformers 50 Hz, nrog siab tshaj plaws voltage rau cov khoom siv tsis pub tshaj 36 kV
IEC 60076-12	Load phau ntawv qhia rau qhuav-hom fais fab transformers

2. Kev kuaj hluav taws xob

2.1. KEV TIV THAIV

Cov kev ntsuam xyuas no yuav ua rau tag nrho cov transformers tom qab kev tsim khoom, ua kom muaj daim ntawv pov thawj kev xeem raug tsim tawm rau txhua tus:

- ntsuas ntawm windings kuj

- Kev ntsuas ntawm kev hloov pauv thiab pawg vector

- Kev ntsuas ntawm impedance voltage thiab load poob

- ntsuas qhov tsis muaj load poob thiab tsis muaj load tam sim no

- siv voltage dielectric xeem ntawm 10kV

- induced voltage dielectric xeem

- Kev ntsuas qhov tso tawm ib nrab.

Tag nrho cov kev xeem no ua raws li IEC 60076-11 thiab IEC 60076-1 rau 60076-3 cov qauv.

2.2. TSEV KAWM NTAWV LUB TSEV TSHAJ

Transformers yuav raug kuaj xyuas.

- Kev ntsuas kub nce siab ua tiav raws li cov qauv simulated loading raws li tau hais los ntawm IEC 60076 tus qauv.

- xob laim impulse xeem raws li IEC 60076-3

- Kev ntsuas luv luv raws li IEC 60076-5

- Kev ntsuas suab nrov raws li IEC 60076-10.

Tag nrho cov kev xeem no ua raws li IEC 60076-11 thiab IEC 60076-1 rau 60076-5 cov qauv.

3. Peb lub tuam txhab

Peb lub tuam txhab muaj ntau tshaj li 10 xyoo ntawm kev tsim thiab kev txhim kho los xyuas kom meej qhov zoo tshaj plaws transformer system. Peb yuav muab cov ntaub ntawv tsim nyog, daim ntawv pov thawj, thiab cov ntawv xeem rau koj.

Peb tuaj yeem ua lub luag haujlwm rau kev tsim, muab cov transformers ua tiav raws li koj qhov yuav tsum tau ua thiab muab cov duab kos kom txaus siab rau peb cov neeg siv khoom siv.
