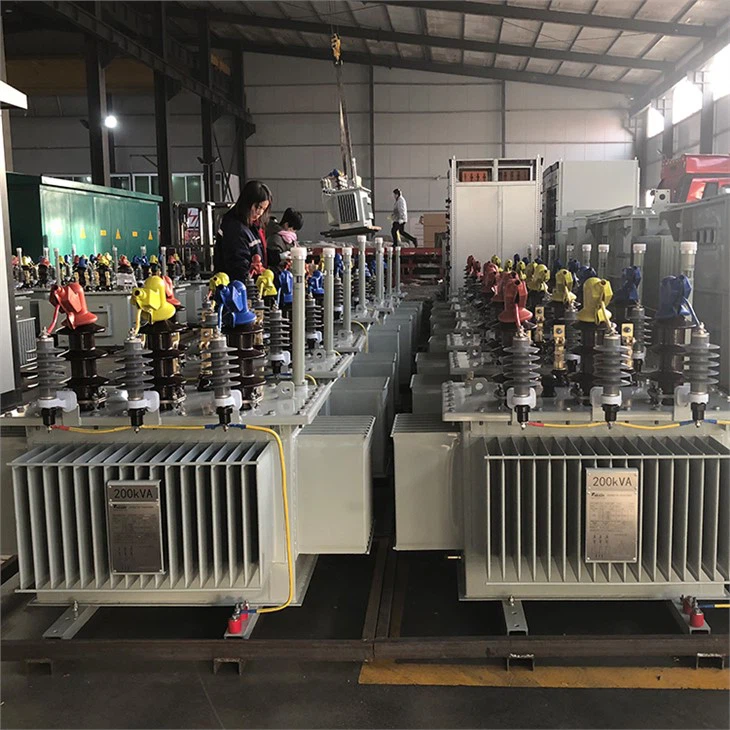

Tom ntej: 200KVA Transformer

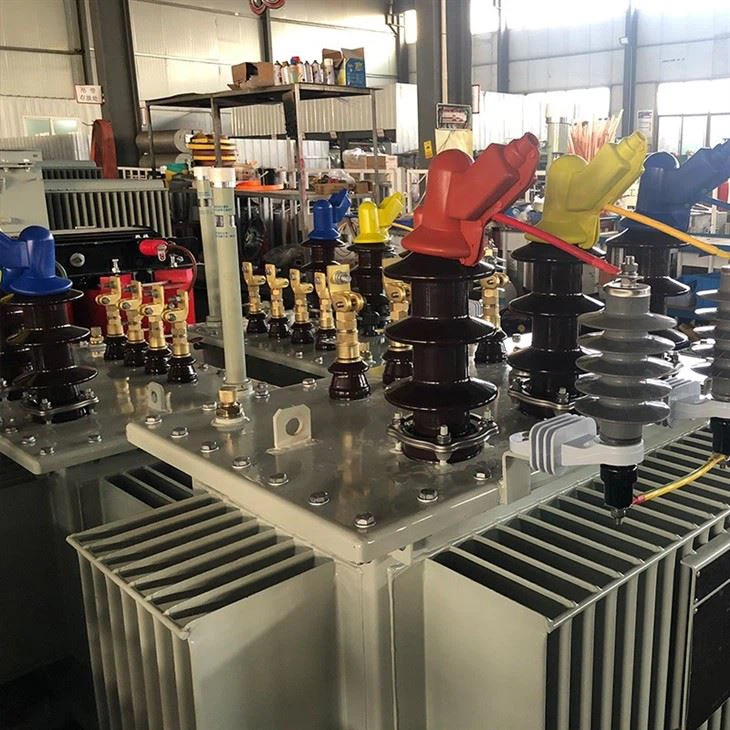

S11-M-200KVA transformer txais cov roj ntim puv ntim yam tsis muaj roj cia tank. Vim qhov kev hloov pauv ntawm qhov kub thiab txias, cov roj ntim ntawm lub tshuab hloov pauv tau hloov kho tag nrho los ntawm elasticity ntawm lub tank roj transformer. Nws tsis muaj-load poob yog 30% qis dua S9, thiab nws muaj zog xob laim cuam tshuam thiab luv Circuit Court kuj. Lub zog-txuag nyhuv yog pom tseeb dua, thiab qhov loj me ntawm lub transformer yog txo. Tam sim no nws yog ib qho khoom siv txuag hluav taws xob tshiab hauv Suav teb. Qhov nruab nrab txhua xyoo txo ​​qhov tsis muaj kev thauj khoom poob yog 10%, thiab qhov nruab nrab txo qis hauv load poob yog 20%.

Feem ntau 10KV S11 roj immersed transformer qauv yog raws li nram no: S11-M-30/10, S11-M-50/10, S11-M -63/10, S11-M-80/10, S11-M-100/10, S11-M-125 /10, S11-M-160/10, S11-M-200/10, S11-M-250/10, S{ {29}}M-315/10, S11-M-400/10, S11-M-630/10, S11-M -800/10, S11-M-1000/10, S11-M-1250/10, S11-M-1600 /10, S11-M-2000/10, S11-M-2500/10

1, Lub ntsiab lus qauv

S11-M - □/□ Tsawg poob fais fab transformer qauv lub ntsiab lus:

S: Sawv cev rau peb-theem transformer

11: Kev ua haujlwm qib code

M: Sawv cev tag nrho

□ / □: raws li qhov ntsuas qhov muaj peev xwm KVA / qib voltage

Kev ua tau zoo ntawm S11-M 200KVA 3 theem transformer ua tau raws li lub teb chaws tus qauv GB1094-1996 "Power Transformers" GB/T6451-1999 "Technical Parameters and Requirements for Three-phase Oil Immersed Power Transformers" . Cov tub ntxhais hlau yog ua los ntawm cov khoom siv txias txias-kuav los tiag silicon steel los xij, nrog rau theem peb-theem seams thiab nto coated nrog curing xim, txo qhov poob thiab suab nrov; Lub kauj yog qhov txhab zoo nrog cov hlau tsis muaj oxygen-dawb tooj liab, thiab cov cua kub dissipation txais cov qauv roj tshiab. Tus tsim yog tsim nyog, thiab cov txheej txheem rwb thaiv tsev yog optimized los txhim kho mechanical zog thiab luv luv-circuit resistance. Cov tsos yog zoo nkauj thiab elegant, thiab kev khiav hauj lwm yog txhim khu kev qha. Dav siv nyob rau hauv substations thiab hauv nroog thiab nyob deb nroog fais fab.

2, Khoom nta:

1. Cov tub ntxhais ntawm S11-M-200KVA transformer yog seamless thiab tsis graded ze li ntawm cov ntshiab ncig hla-section ua los ntawm silicon steel sawb khoom. Cov ncej hlau thiab cov tub ntxhais hlau yog txuas nrog cov ces kaum sib npaug, thiab cov tub ntxhais hlau yog nyob rau hauv ib qho kev kaw.

2. Lub siab thiab tsis tshua muaj hluav taws xob coils ntawm lub zog hloov hluav taws xob tau raug mob ncaj qha rau ntawm cov tub ntxhais hlau, nrog kev sib raug zoo thiab kev tiv thaiv luv luv.

3. Vim yog cov qauv tshwj xeeb ntawm 200KVA 3 theem transformer core, uas yog ua los ntawm high-zoo txias-kuav los tiag silicon steel nplooj ntawv nrog crystalline orientation thiab annealed, tsis-load poob ntawm S11-M 200KVA transformer yog txo los ntawm 30%, qhov tsis muaj load tam sim no yog txo los ntawm 70%, thiab lub suab nrov yog txo los ntawm 8 decibels piv rau tib lub peev xwm S9 hom.

4. Tshem tawm cov roj cia tank. Siv lub corrugated phaj roj tank, qhov kub ntawm cov roj ntim hloov pauv tau hloov kho los ntawm elasticity ntawm corrugated phaj kom cais cov roj transformer los ntawm huab cua thiab ua kom lub neej ntev.

5. Kev siv cov corrugated roj tso tsheb hlau luam rau qhov kub thiab txias occupies ib cheeb tsam me me thiab muaj qhov zoo nkauj zoo nkauj.

6. Kev ua haujlwm siab ntawm cov tub ntxhais hlau ua haujlwm yuav txo qis kev siv zog, txhim kho cov khoom zoo, thiab ruaj khov.

3, Technical parameters

Technical parameters ntawm 10kV S11 series tsis tshua muaj zog-txuag transformer

Cov hluav taws xob ntau: 10kV (6, 6.3, 10, 10.5, 11)

Tsawg voltage: 0.4kV

Pab pawg sib txuas: Yyn0 lossis Dyn11

Kev tswj hluav taws xob ntau: ± 5% lossis ± 2x2.5%

200kva Transformer ntau npaum li cas?

200kVA Roj Immersed Transformer Nqe: USD2 * 14.00 / SET

S11-M 200KVA 3 theem transformer txais lub teb chaws tus qauv tsim qauv, nrog cov qauv zoo tshaj plaws thiab tsim nyog, muaj zog tiv thaiv luv luv, thiab nws qhov kev ua tau zoo nce mus txog qib ntawm cov khoom lag luam thoob ntiaj teb zoo sib xws. Piv nrog rau cov khoom lag luam S9, qhov nruab nrab tsis muaj kev thauj khoom poob qis los ntawm 10.25%, tsis muaj kev thauj khoom tam sim no txo ​​los ntawm 37.7%, thiab qhov nruab nrab load poob qis los ntawm 22.4%. Cov qauv tsim nyog thiab cov tsos zoo nkauj. Raws li cov neeg siv yuav tsum tau, cov roj tank tuaj yeem yog daim ntawv thiab lub raj cua sov dissipation, ua rau nws yog cov khoom siv txuag hluav taws xob ntau tshaj plaws nyob rau xyoo tas los no.
