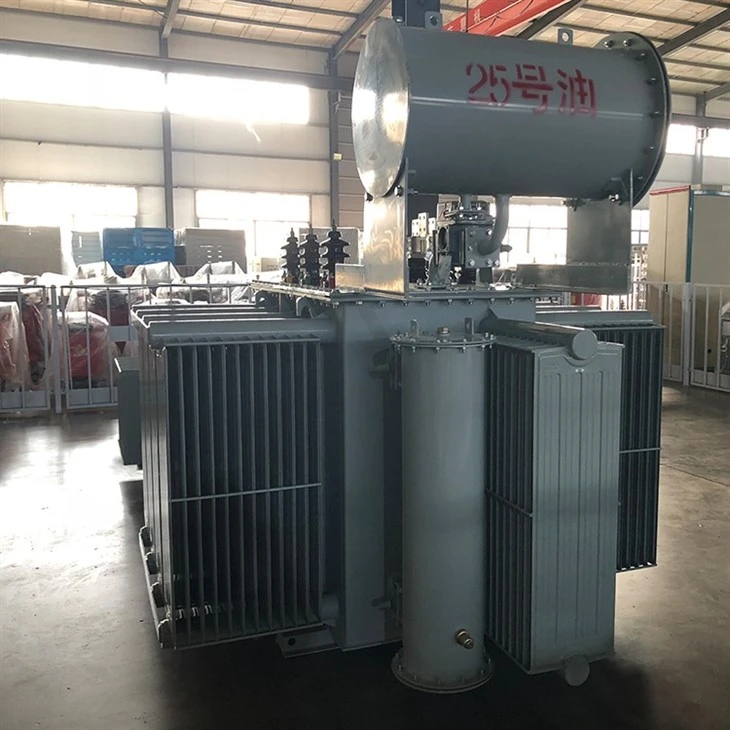

2500 KVA Fais Fab Transformer
Transformer hom: hermetically kaw
Lub zog: 2500kVA
Rated voltage ntawm LV winding: 0.69 kV
Rated voltage ntawm HV winding: 6 kV
Kev sib txuas pab pawg ntawm windings: Dyn11
Muaj nuj nqi
Product Description:
Lub 2500 kva fais fab transformer yog ib tug txhim khu kev qha hluav taws xob transformer uas yog tsim los mus nce los yog nqis voltage theem kom tau raws li cov kev cai ntawm lub hwj chim mov. Peb lub transformer yog tsim los xa cov khoom siv hluav taws xob zoo, txhim khu kev qha thiab zoo ib yam rau ntau yam kev siv, nrog rau kev lag luam thiab kev lag luam.
Khoom Parameter:
|
Transformer hom |
hermetically kaw |
|
Hwj chim |
2500 kVA ua |
|
Rated voltage ntawm LV winding |
0.69 kV |
|
Rated voltage ntawm HV winding |
6kv ua |
|
Kev sib txuas pab pawg ntawm windings |
Dyn 11 |
|
Voltage tswj ntau yam |
±2x2.5% |
|
Cov khoom siv winding |
tooj liab |
|
luv Circuit Court poob |
28000 W |
|
Tsis-load losses |
2800 W |
|
Short circuit voltage |
6.5% |
|
Tsis muaj load tam sim no |
0.4% |
|
Rated zaus |
50 Hz |
|
Ambient kub |
los ntawm -45 degree mus rau +40 degree |
|
Altitude saum hiav txwv theem |
1000 m |
Cov txiaj ntsig ntawm cov khoom:
- High Efficiency: Lub transformer yog tsim los xa cov kev ua tau zoo tshaj plaws, yog li ua kom lub zog poob qis.
- Kev ntseeg tau: Tsim kom kawg, lub transformer yog ua los ntawm cov ntaub ntawv zoo uas ua rau nws muaj zog rau kev siv mus ntev.
- Tsis tshua muaj suab nrov: Lub transformer yog tsim los kom nyob ntsiag to thiab ua haujlwm zoo, yog li ua kom cov suab nrov tsawg tsawg.
- Compact Design: Peb lub tshuab hloov pauv yog compact thiab siv qhov chaw tsawg kawg nkaus, yog li ua kom yooj yim rau kev xa thiab nruab.
Cov khoom kuaj:
Peb 2500 kva fais fab transformers raug kuaj raws li IEC, ANSI, IEEE cov qauv kom ntseeg tau tias lawv ua tau raws li cov neeg siv khoom thiab cov qauv kev lag luam. Peb kuaj rau cov hauv qab no:
- Temperature Rise Test
- Winding Resistance Test
- Kev Ntsuas Kev Tso Tawm Ib Feem
- Impulse Voltage Test
- Transformer Ratio Test
Cov txheej txheem tsim khoom:
Peb 2500 kva fais fab transformers yog tsim raws li nruj tswj kev ntsuas ntawm txhua theem ntawm cov txheej txheem ntau lawm. Los ntawm cov khoom siv raw khoom mus rau kev xa khoom, peb xyuas kom meej tias peb cov transformers ua tau raws li cov qauv thoob ntiaj teb thiab cov neeg siv khoom tshwj xeeb. Peb ntiav cov kws tshaj lij thiab cov neeg ua haujlwm paub txog los tsim cov tshuab hloov pauv no siv cov cuab yeej siv niaj hnub thiab cov cuab yeej thev naus laus zis tshiab.
Xaus:
Peb 2500 kva fais fab transformer yog lub zog zoo heev rau kev siv ntau yam. Txawm hais tias koj yog cov lag luam lossis cov neeg siv khoom lag luam, peb lub tshuab hloov pauv tau cog lus tias yuav xa cov hluav taws xob zoo, txhim khu kev qha thiab zoo ib yam. Txiav txim rau koj li niaj hnub no thiab paub txog ntau yam txiaj ntsig uas tuaj nrog muaj lub tshuab ua haujlwm zoo tshaj plaws hauv koj lub lag luam.
