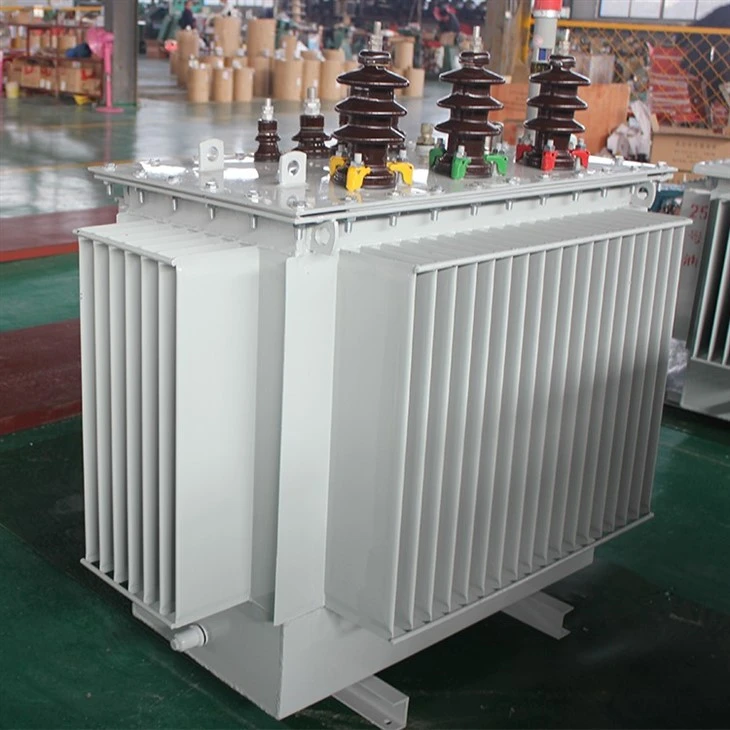

80 KVA Transformer

Technical Parameter:

Siv ib puag ncig: sab nraum zoov

Voltage ratio: 10/0.4 kV

Peev xwm: 80kva

Txias hom: Roj-immersed nws tus kheej-txias

Zaus: 50Hz

Theem naj npawb: Peb theem

impedance voltage: 4.0 feem pua

Tsis muaj load poob: 180W

Encapsulation: Ua tiav foob

Qauv nab npawb: S11-80kVA

Load poob: 1250W

80 kVA Transformer Amps: 4.6A / 115.5A

Hom S11 80 kVA Transformer yog ib qho kev hloov kho tshiab ntawm hom S9 lub zog hloov pauv, tau txais txiaj ntsig zoo ntawm kev poob qis thiab qis suab nrov, thiab tuaj yeem ua tiav cov txiaj ntsig zoo txuag hluav taws xob thiab txo cov pa phem. Piv nrog rau cov roj zoo tib yam-immersed transformer, tag nrho-sealed transformer tshem tawm cov roj cia tank, cov roj ntim hloov tau hloov kho thiab them nyiaj los ntawm elasticity ntawm daim ntawv corrugated ntawm cov roj corrugated, lub transformer cais tawm ntawm huab cua, tiv thaiv thiab slows down lub deterioration ntawm cov roj thiab rwb thaiv tsev laus, txhim khu kev ntseeg tau ntawm kev ua hauj lwm, thiab cov kev khiav hauj lwm ib txwm yog tu-dawb.

S11 Tsawg Poob Tag Nrho Cov Roj Immersed Transformer Qauv Specification

10/0.4KV Roj Immersed Transformer

35/0.4KV Roj Immersed Transformer

35/10KV Roj Immersed Transformer

S11 80 kVA Transformer Khoom Duab

Khoom nta:

1. Lub 80 kVA Transformer core yog ua los ntawm cov khoom lag luam txias txias silicon steel daim ntawv, uas zoo heev txo qhov tsis muaj qhov poob thiab tsis muaj kev thauj khoom tam sim no, thiab lashes cov tub ntxhais los txhim kho qhov nruj ntawm cov tub ntxhais thiab txo cov suab nrov.

2. Siab thiab tsis tshua muaj hluav taws xob winding nrog oxygen dawb tooj liab winding, tsis tshua muaj hluav taws xob winding 500kVA thiab hauv qab no siv ob txheej txheej lub tog raj kheej. 630kVA thiab saum toj no txais yuav ob lub helix lossis quadruhelix qauv, thiab lub siab voltage winding txais ntau txheej txheej lub tog raj kheej.

3. Cov pab pawg sib txuas transformer txais yuav Dyn11 los txo cov kev cuam tshuam ntawm kev sib haum xeeb ntawm daim phiaj hluav taws xob thiab txhim kho cov khoom siv hluav taws xob zoo.

4. Lub transformer yog tag nrho kaw cov qauv, txuas lub neej kev pab cuam, tsis muaj lifting core, tsis muaj txij nkawm.

5. Qhov ntsuas suab nrov qis dua tus qauv. Tom qab kev thauj mus los ib txwm, qhov kev hloov pauv no tuaj yeem ntsia tau yam tsis muaj kev soj ntsuam tseem ceeb, thiab qhov kev lees paub qhov project tuaj yeem muab tso rau hauv kev ua haujlwm tom qab dhau.
