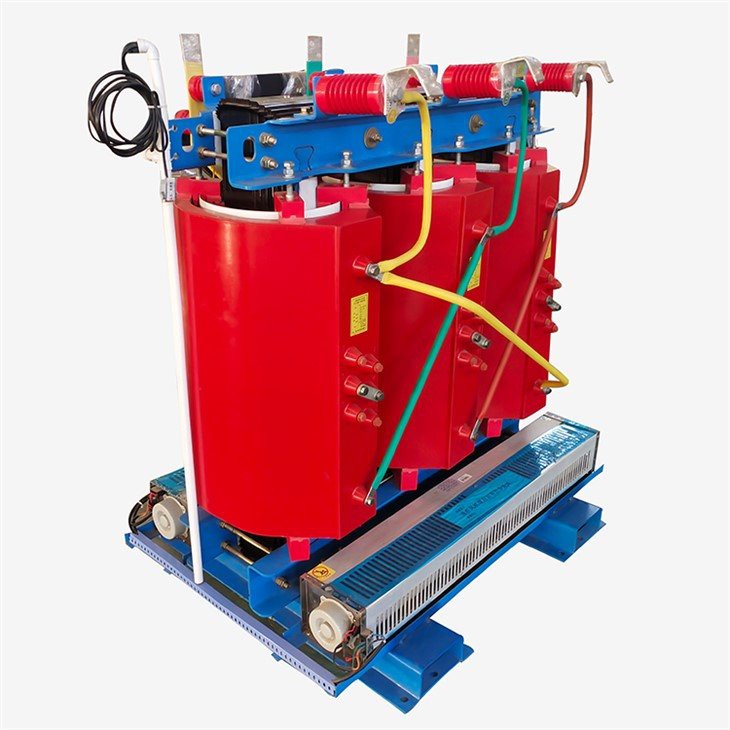

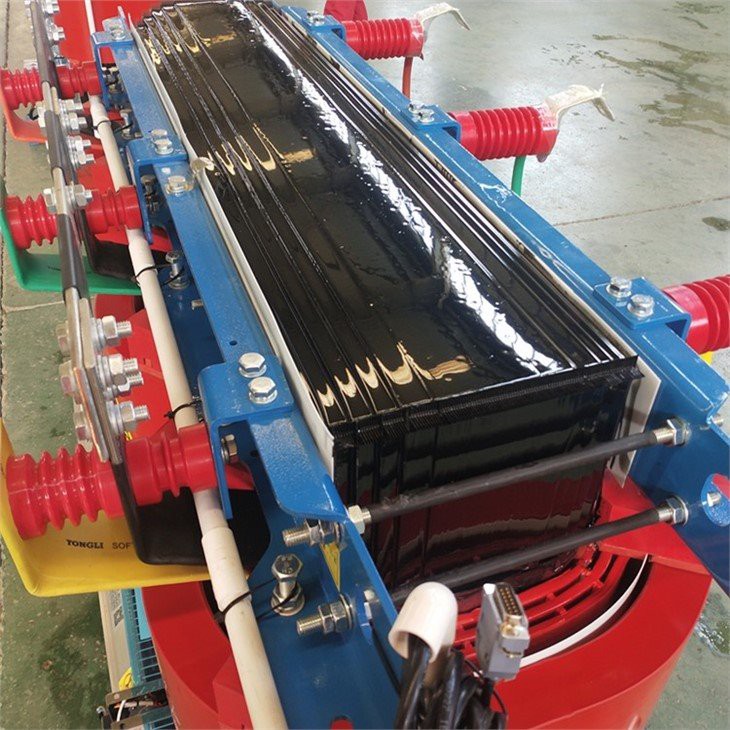

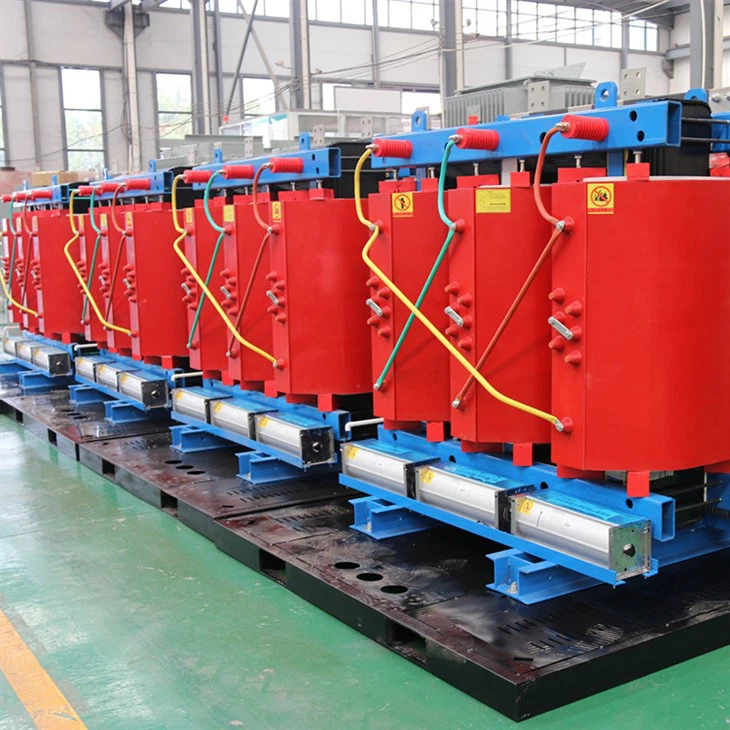

10KV Epoxy Cast Resin Qhuav Hom Transformer

Hom: 10KV Qhuav hom Transformer
Warranty: 2 xyoos
Kev Pabcuam OEM / ODM: Yog
Shipping: Hiav txwv

Muaj nuj nqi

(KVA) Rated muaj peev xwm	Voltage kev sib xyaw			Connection Group Symbol	Tsis muaj load poob (W)	Load Loss (W)			Tsis muaj load tam sim no (%)	Short-circuit impedance (%)
(KVA) Rated muaj peev xwm	Lub zog hluav taws xob (KV)	Tapping ntau yam ntawm High Voltage	Tsawg Voltage (KV)	Connection Group Symbol	Tsis muaj load poob (W)	130 degree (B) (100 degree)	155 degree (F) (120 degree)	180 degree (H) (145 degree)	Tsis muaj load tam sim no (%)	Short-circuit impedance (%)
30	6 6.3 6.6 10 10.5 11	±2.5% ±5%	0.4	Dyn11 Yyn0	190	670	710	760	2	4
50					270	940	1000	1070	2
80					370	1290	1380	1480	1.5
100					400	1480	1570	1690	1.5
125					470	1740	1850	1980	1.3
160					540	2000	2130	2280	1.3
200		±2X2.5% ±5%			620	2370	2530	2710	1.1
250					720	2590	2760	2960	1.1
315					880	3270	3470	3730	1
400					980	3750	3990	4280	1
500					1150	4590	4880	5230	1
630					1340	5530	5880	6290	0.85
630					1300	5610	5960	6400	0.85	6
800					1520	6550	6960	7460	0.85
1000					1770	7650	8130	8760	0.85
1250					2090	9100	9690	10300	0.85
1600					2450	11000	11700	12500	0.85
2000					3050	13600	14400	15500	0.7
2500					3600	16100	17100	18400	0.7
1600					2450	1220	12900	13900	0.85	8
2000					3050	15000	15900	17100	0.7
2500					3600	17700	18800	20200	0.7
