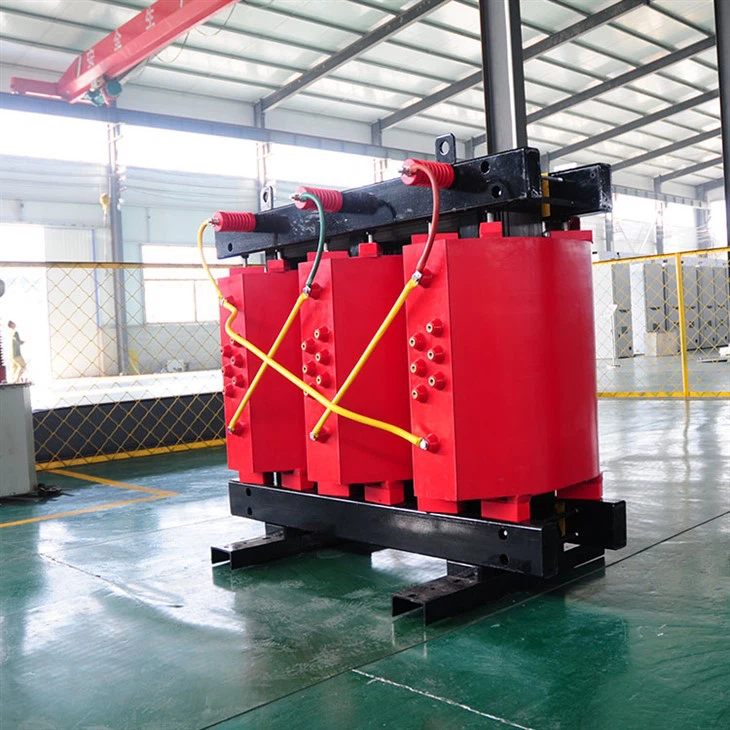

50 KVA Qhuav Hom Transformer

50 KVA Dry Type Transformer yog cov khoom lag luam saum toj kawg nkaus uas tsim los ntawm peb lub tuam txhab. Nws yog tsim los ua kom tau raws li qhov kev thov loj hlob rau lub zog txuag thiab txhim khu kev qha transformers rau ob qho tib si kev lag luam thiab kev lag luam. Lub transformer nta advanced technology uas txhim khu nws durability, efficiency, thiab kev ua tau zoo. Hauv tsab xov xwm no, peb yuav muab cov lus qhia dav dav ntawm cov khoom no, qhia txog nws cov yam ntxwv tseem ceeb, cov txiaj ntsig, thiab cov ntsiab lus ntawm tuam txhab.

Nta

50 KVA Dry Type Transformer los nruab nrog lub tswv yim ntawm cov yam ntxwv zoo kawg uas ua rau nws xa cov kev ua tau zoo tshwj xeeb.

1. High Efficiency: Lub transformer boasts ib tug impressive efficiency ntsuam xyuas uas xyuas kom meej tias lub zog nkoos yog khaws cia kom tsawg kawg nkaus. Qhov no txhais ua kev txuag nqi rau cov neeg siv khoom hauv lub sijhawm ntev.

2. Tsis tshua muaj suab nrov: Lub transformer ua haujlwm nrog lub suab nrov tsawg, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev siv hauv thaj chaw nyob lossis qhov chaw uas yuav tsum tau ua haujlwm ntsiag to.

3. Compact Design: Lub transformer yog tsim los siv qhov chaw tsawg, ua rau nws zoo meej rau kev siv hauv cov chaw tsim khoom me me rau nruab nrab.

4. Kev Txhim Kho Yooj Yim: Lub transformer tau tsim los rau kev txhim kho yooj yim, tsis hais qhov chaw ntawm qhov chaw teeb tsa.

5. High Durability: Lub transformer yog tsim los tiv taus cov xwm txheej nyuaj, ua rau nws zoo tagnrho rau kev siv rau hauv qhov hnyav hnyav.

Technical Specifications:

- Kev ntsuas hluav taws xob: 50 KVA

- Thawj qhov hluav taws xob: 11KV 10KV 6KV

- Secondary Voltage: 400V 415V 433V

- Ntau zaus: 50 lossis 60 Hz

- Kev ua tau zoo: 98 feem pua

- Suab nrov:<55dB

- Rwb thaiv tsev Class: H

- Cua txias hom: AN / AF

- impedance: 4 feem pua

- Kev ntsuas IP: IP24

- Nyhav: 1000kg

- 50 KVA Dry Type Transformer Dimensions (L x W x H): 1000 x 800 x 1200 mm

Cov qauv khoom

Lub transformer muaj ib lub tshuab nqus tsev impregnated rwb thaiv tsev uas yog nyob rau hauv ib tug rugged, corrosion-resistant enclosure.

Cov windings yog ua los ntawm tooj liab lossis txhuas thiab txheej txheej nrog cov khoom siv hluav taws xob kub kub uas muab kev tiv thaiv tshav kub thiab ya raws.

Lub tshuab hluav taws xob cua txias yog tsim los rau cov huab cua hauv huab cua, muab kev ua haujlwm zoo thermal thiab txo qis zog.

Lub transformer tuaj yeem ntsia tau rau hauv txhua qhov kev taw qhia, ua rau nws zoo tagnrho rau qhov chaw tsis muaj kev txwv.

Khoom zoo

50 KVA Dry Type Transformer muaj ntau qhov zoo dua li cov hloov pauv ib txwm muaj. Ua ntej, nws raug kaw tag nrho, tshem tawm qhov xav tau ntawm cov roj lossis lwm cov kua dej uas muaj hluav taws kub, ua rau nws muaj kev nyab xeeb thiab zoo ib puag ncig.

Qhov thib ob, lub tshuab nqus tsev impregnated rwb thaiv tsev siv nyob rau hauv lub transformer kev tsim kho txhim kho nws cov kev ntseeg tau thiab durability, kom ntseeg tau tias kev ua tau zoo ib yam nyob rau lub sij hawm ntev.

Thirdly, transformer lub ntuj cua txias system muab kev ua kom txias zoo dua, txo kev siv hluav taws xob, thiab ua rau muaj txiaj ntsig zoo rau cov neeg siv khoom.

Tuam txhab profile

Peb lub tuam txhab yog cov chaw tsim khoom ntawm cov hluav taws xob hloov hluav taws xob, nrog lub ntiaj teb muaj nyob hauv ntau lub teb chaws. Peb muaj ib pab pawg neeg txawj engineers thiab cov kws tshaj lij uas tau cog lus los muab cov khoom zoo, txhim khu kev qha transformers uas ua tau raws li cov kev xav tau tshwj xeeb ntawm peb cov neeg siv khoom. Peb mob siab rau kev nruam ntej thiab kev txhim kho, kom ntseeg tau tias peb cov khoom yog ib txwm nyob rau hauv lub forefront ntawm technology. Peb kuj muab kev txhawb nqa thiab kev pabcuam zoo tom qab muag, ua kom peb cov neeg siv khoom ib txwm tau txais kev pabcuam zoo tshaj plaws.

Xaus

50 KVA Dry Type Transformer yog qhov zoo, muaj txiaj ntsig, thiab txhim khu kev qha transformer uas zoo tagnrho rau ntau yam kev lag luam thiab kev lag luam. Nws cov thev naus laus zis siab tshaj muaj ntau qhov zoo dua li cov hloov pauv ib txwm, ua rau nws nyiam xaiv rau cov neeg siv khoom thoob ntiaj teb. Peb lub tuam txhab kev cog lus rau kev ua tau zoo thiab kev tsim kho tshiab kom ntseeg tau tias peb cov khoom yog cov txheej txheem siab tshaj plaws, muab peb cov neeg siv khoom nrog cov kev daws teeb meem zoo tshaj plaws rau lawv cov kev xav tau transformer.
