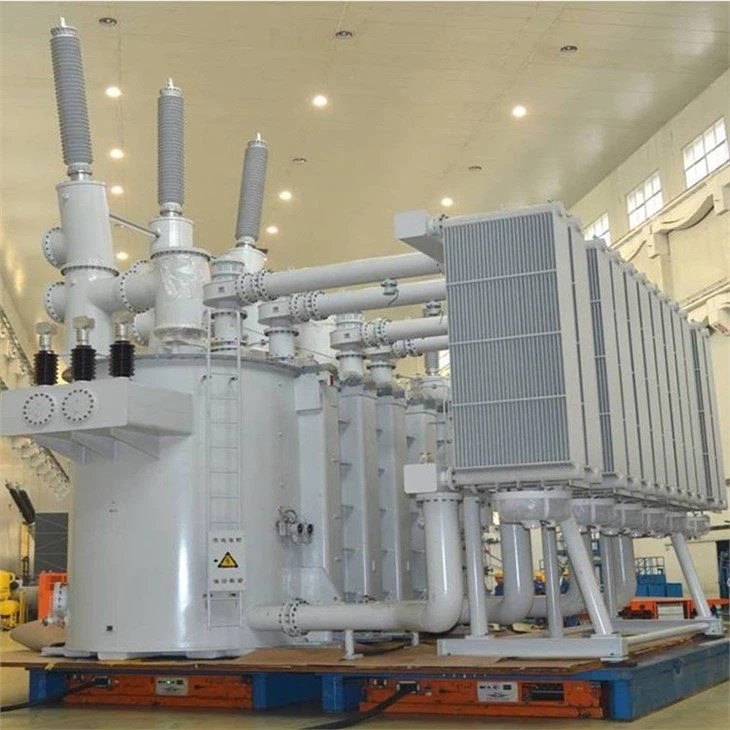

110kV High Voltage Peb Theem Ob Winding NLTC Fais Fab Transformer
video
110kV High Voltage Peb Theem Ob Winding NLTC Fais Fab Transformer

110kV High Voltage Peb Theem Ob Winding NLTC Fais Fab Transformer

Qhov siab:<1000M ( can be adjusted according to customer requirements)
Qhov kub siab tshaj plaws ib puag ncig: +40 degree, qhov kub thiab txias ib puag ncig: -40 degree (tuaj yeem kho raws li tus neeg siv khoom thov)

Xa kev nug

Muaj nuj nqi

Khoom Description



110kV Roj-immersed Fais Fab Transformers

Tam sim no, kab nrog voltage theem ntawm 110kV thiab saum toj no feem ntau yog siv los ua cov kab sib kis, thiab cov kab nrog voltages ntawm 35kV thiab hauv qab no yog siv los ua cov kab xa tawm. 110kV transformers feem ntau yog siv rau hauv cov khoom siv hluav taws xob los hloov 110kV kis tau tus mob mus rau 35kV, 20kV lossis 10kV faib hluav taws xob. , rau kev siv los ntawm cov neeg siv los yog pej xeem faib transformers. Cov neeg siv hluav taws xob loj kuj tseem siv 110kV transformers raws li cov neeg siv hloov pauv. Cov nroj tsuag me me kuj tseem siv 110kV raws li daim phiaj sib txuas, yog li 110kV transformer yog siv los ua ib kauj ruam-up transformer.


Feem ntau siv 110kV High Voltage Peb Theem Ob Winding NLTC Fais Fab Transformer muaj peev xwm ntawm 10,000 txog 63,000kVA, nrog 31,500kVA yog qhov feem ntau hauv cov tshuab hluav taws xob. Lub peev xwm siab tshaj plaws uas tsim los ntawm peb lub tuam txhab yog 100000kVA.



Cov qauv

GB1094.1 Fais fab Transformer General Regulation

GB1094.2 Fais fab Transformer Kub nce

GB1094.3 Fais fab Transformer Rwb thaiv tsev Levels thiab Rwb thaiv tsev Test

GB1094.5 Fais fab Transformers Short-circuit Peev xwm

GB6451 Roj-immersed hwj chim transformers technical tsis thiab yuav tsum tau


Transformer xeem

Hauv qab no yog cov kev sim ua los ntawm Hebei TIANWEI. Ua ntej xa khoom, lwm yam kev sim xav tau los ntawm cov neeg siv khoom kuj tuaj yeem ua tiav raws li.

Rwb thaiv tsev kuj kuaj

Tsis kam ntawm tag nrho cov windings

Xyuas qhov voltage piv thiab vector pawg

Tsis-load kuaj ntawm qhov ntsuas zaus thiab ntsuas hluav taws xob

Kev ntsuas impedance

Tiv thaiv qhov ntsuas hluav taws xob

Induced over-voltage withstand kev xeem

Kev ntsuas qhov tso tawm ib nrab

Roj av kuaj


Khoom Parameter



Cov ntaub ntawv qhia txog 110kV Chav Kawm Peb Theem Ob Qhov Winding NLTC Fais Fab Transformer
Rated zog (kVA)High VoltageTsawg voltageCov cim kev sib txuasShort Circuit ImpendenceLoss (W)Tsis muaj load tam sim no (%)
Tsis-load poobOn-load poob
6300 kVA ua110 KV
121 KV
1 38kv		6.3kv ua
6.6 kwm
10 KV
10.5 KV TSI
11 KV		YNd 1110.57500 W34900 W0.69
8000 kVA ua9000 W42500 W0.69
1000kVA ua10500 W50200 W0.64
12500 kVA ua12400 W59500 W0.64
16 000 kVA15000 W73100 W0.59
20000 kVA ua17800 W88400 W0.59
25 000 kVA21000 W105000 W0.54
31500kVA ua25000 W126000 W0.54
40 000 kVA29900 W148000 W0.56
50000 kVA ua35300 W178500 W0.52
63 000 kVA41900 W221000 W0.48


Peb Daim Ntawv Pov Thawj



CERTIFICATE 800-400


Project Case





PROJECT CASE 800


Peb lub Hoobkas





PRODUCTION WORKSHOP 800

Hebei Tianwei International Trading Co., Ltd yog ib tug kws tsim khoom rau lub hwj chim transformer, high voltage, low voltage switchgear, box type substation thiab relation products. Peb muaj kev tswj hwm nruj raws li ISO 9001 thoob ntiaj teb kev ua haujlwm zoo. Lub tuam txhab yog ib lub tuam txhab niaj hnub nrog lub zog ntawm kev siv tshuab, cov cuab yeej tshuaj xyuas. Niaj hnub no, peb cov khoom tau lug siv nyob rau hauv hluav taws xob fais fab, thee, roj av, tshuaj, metallurgy, tsheb thauj mus los, kev sib txuas lus, lub tsev thiab lub nroog infrastructure, Tianwei tsis tsuas yog muaj cov khoom zoo heev. tab sis kuj zoo tom qab muag kev pab cuam. Cov no tau txais kev qhuas thiab kev ntseeg siab los ntawm cov neeg siv khoom. Lub tuam txhab txij li thaum pib, ib txwm tau coj mus rau "zoo ua ntej, cov neeg siv khoom ua ntej, kev pabcuam thawj lub koob npe nrov ua ntej" raws li peb lub hom phiaj, yav tom ntej, nyob rau hauv tag nrho cov neeg ua haujlwm ntawm Tianwei, peb ntseeg tias peb yuav muaj kev kaj siab dua tag kis!


Vim li cas thiaj xaiv peb



1. Muab cov kev daws teeb meem zoo ntim lub zog ntawm lub sijhawm luv tshaj plaws hauv kev lag luam rau cov neeg siv khoom lag luam thiab kev lag luam.

2.Kev tsim khoom thiab muab khoom raws li cov qauv kev lag luam siab tshaj plaws - ISO 9001 thiab SANS.

3.Peb nqis peev pab rau kom muaj ntau yam ntawm cov qauv hloov pauv thiab MV switchgear hauv Tshuag - peb muab sai thiab muab kev pabcuam thaum muaj xwm txheej ceev 24/7 kom ntseeg tau tias lub sijhawm poob qis.

4.Peb lub tuam tsev ua haujlwm siab, kev tsim kho vaj tse thiab cov neeg ua haujlwm tau txais kev cob qhia kom ceev, tag nrho ntawm qhov chaw teeb tsa, kev pabcuam thiab kev muaj peev xwm.
